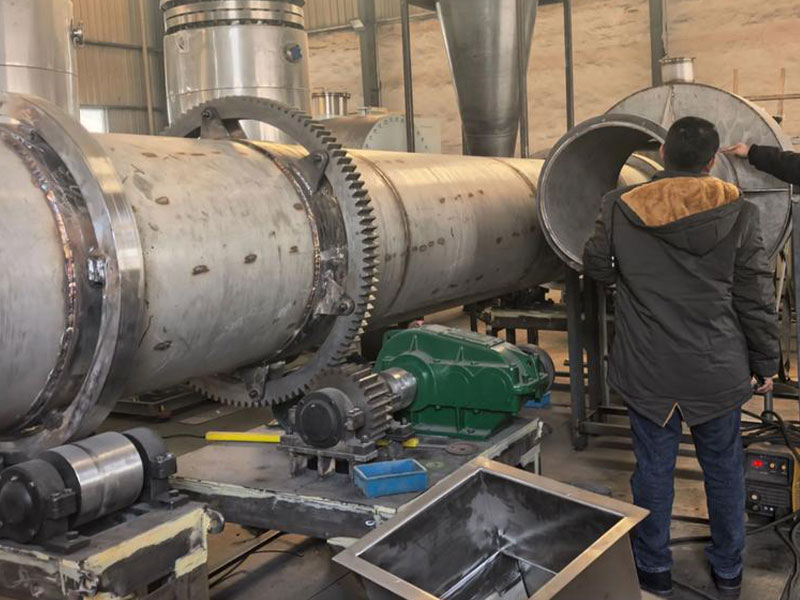

Special rotary kiln dryer for sludge acceptance by foreign businessmen from Sri Lanka
Special drum dryer for sludge, special rotary kiln dryer for sludge, rotary kiln, sludge drying equipment, high temperature drum dryer, rotary kiln furnace drying equipment.
Case Details
Rotary kiln drum dryerAs an efficient and reliable drying equipment, it is widely used in many fields such as metallurgy, chemical industry, and environmental protection. This article will detail its structure, working principle, technical advantages and industry applications to help customers better understand and choose this equipment.
1. Structure and working principle
It is mainly composed of barrel, scraping plate, wheel, supporting roller, driving device and air sealing device. The cylinder is usually rolled out of steel plate, and the diameter and length are designed based on the throughput and material characteristics. The scraping plate is installed on the inner wall of the cylinder and is used to pick up and sprinkle the material, increase the contact area between the material and hot air, and improve drying efficiency.
During work, the wet material is added to the cylinder drying main machine from the front end. As the cylinder rotates, the material is continuously picked up and sprinkled under the action of the plate, and effectively contacts the hot air passing through the cylinder or the heated wall surface. and is dried. The dried product is collected from the lower part of the rear end of the cylinder. The heat carrier is generally air, flue gas or superheated water vapor. The appropriate heat carrier is selected according to material characteristics and environmental protection requirements.
2. Technological advantages and innovation points
Compared with traditional drying equipment, rotary kiln drum dryers have the following significant advantages:
Efficient and energy-saving: By improving the cylinder structure and heat transfer methods, the dryer significantly improves thermal efficiency and drying uniformity. The thermal efficiency of traditional rotary kiln dryers is 50-60%, while the thermal efficiency of the optimized model can reach 65-75%, an increase of 15-25%.
Precise temperature control: Multi-zone temperature control technology is adopted, and the temperature control accuracy can reach ±10℃ to ensure temperature stability during the drying process and avoid damage to materials due to temperature fluctuations.
Low material damage rate: The optimized lifter design effectively reduces the material damage rate from the traditional 3-8% to below 1.5%, improving product quality and yield.
Compact design: The new dryer adopts a compact design, which reduces the floor area by 20%, saves factory space and reduces construction costs.
Intelligent control: Equipped with advanced intelligent control system, it realizes real-time monitoring and automatic adjustment of the drying process, improving the convenience and safety of operation.
Environmental protection and energy conservation: In environmentally friendly applications, drum dryers can use renewable energy as a heat source, such as biogas combustion used in the municipal sludge drying process, which not only saves energy but also reduces environmental pollution.
3. Industry application and optimization plan
It is widely used in many industries such as metallurgy, chemical industry, and environmental protection, and provides a variety of optimization solutions for different material and process requirements:
Mining and metallurgical industry: In the drying of iron ore fines, specially designed anti-wear ceramic liners are used to extend equipment life by more than three times, and the energy consumption is only 850kcal/kg of water, significantly reducing production costs.
Chemical field: During the drying process of PVC resin, precise temperature control (120±5℃) and nitrogen protection system are used to effectively prevent thermal degradation and ensure product quality. At the same time, it is equipped with a solvent recovery device to realize the recycling of resources.
Environmentally friendly application: In municipal sludge drying, a combined process is used, combining thin layer evaporation and rotary drum drying, to reduce the moisture content from 80% to 10%. The heat source uses biogas combustion, which not only saves energy but also reduces carbon emissions, and meets environmental protection requirements.
Other applications: It can also be used to dry various chemical products such as ammonium sulfate, alkali sulfide, Anfu powder, urea, oxalic acid, calcium-magnesium phosphate fertilizer, ordinary calcium superphosphate, heavy superphosphate and sodium tripolyphosphate. It has a wide range of applicability.
4. Selection design and maintenance
Choosing the right dryer model and configuration is crucial to ensuring drying effect and production efficiency. The following factors should be considered when selecting and designing:
Processing capacity: Determine the processing capacity of the equipment according to production needs, and select the appropriate cylinder diameter and length-diameter ratio. The cylinder diameter of the high-performance model can reach 4.2 m, the length-diameter ratio is 12:1, and the speed can be adjusted by stepless frequency conversion.
Hot air temperature: Select the appropriate hot air temperature according to the characteristics of different materials.Rotary kiln drum dryerMulti-temperature zone gradient control can be realized to meet the temperature requirements of different drying stages.
Key configuration: Select the appropriate sheet form, driving device and air sealing device to ensure stable operation and efficient drying of the equipment.
Intelligent control system: Equipped with advanced intelligent control system to realize real-time monitoring and automatic adjustment of the drying process, improving the convenience and safety of operation.
Maintenance is an important part to ensure long-term stable operation of the drum dryer. Customers are advised to formulate preventive maintenance plans, regularly inspect each component of the equipment, and identify and deal with potential problems in a timely manner. Common fault handling methods include adjusting the angle of the plate, replacing worn parts, cleaning up accumulated dust, etc.
As an efficient and reliable drying equipment, rotary kiln drum dryer has become a part of modern industrial production due to its structural design, advanced technical advantages and wide application fields. Through the introduction of this article, we believe that customers will have a deeper understanding of the dryer, be able to better select and use this equipment, and improve production efficiency and product quality. In the future, with the continuous advancement and innovation of technology, it will play an important role in more fields and bring more convenience and benefits to industrial production.
