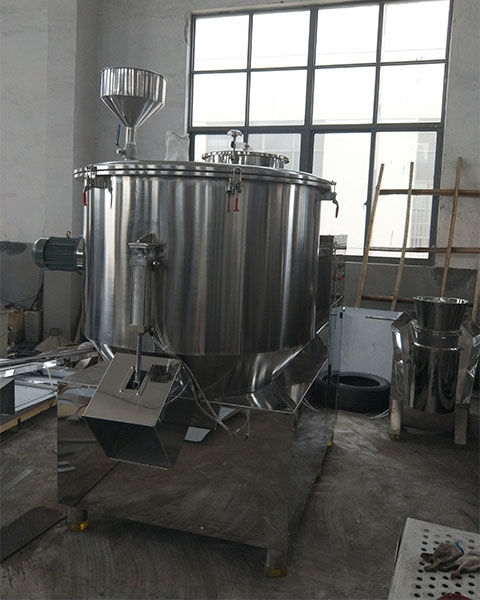

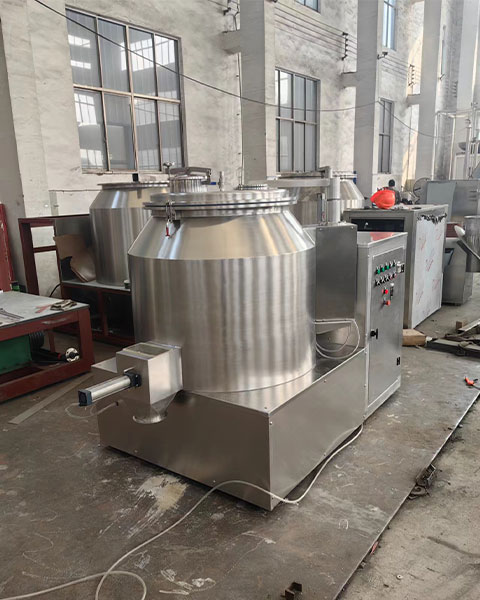

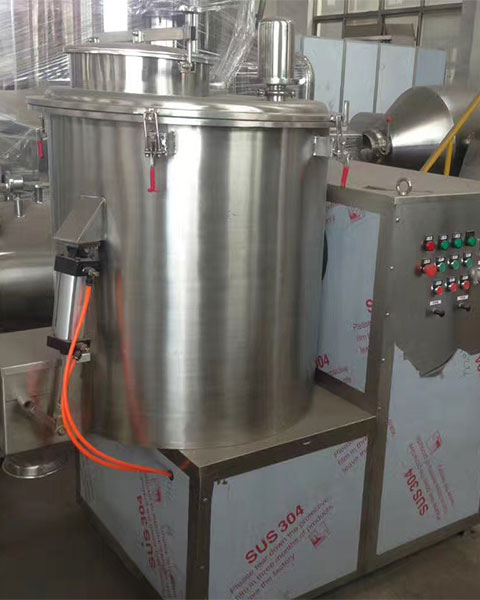

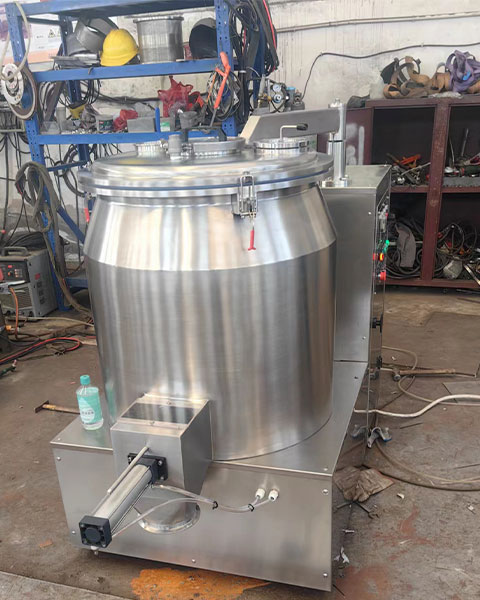

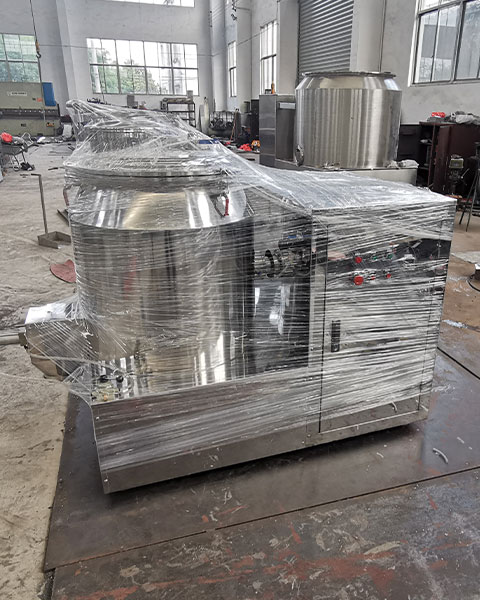

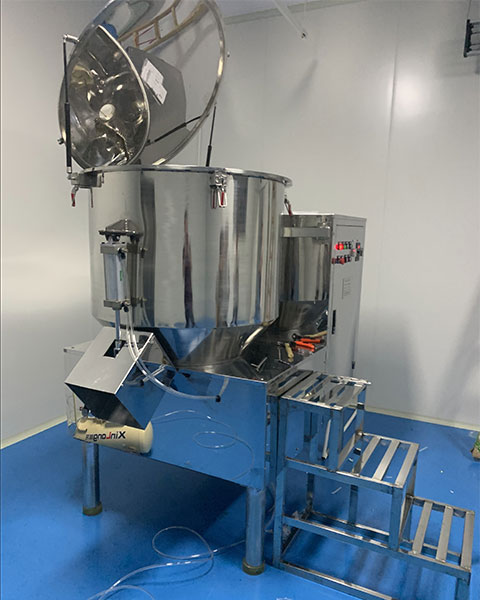

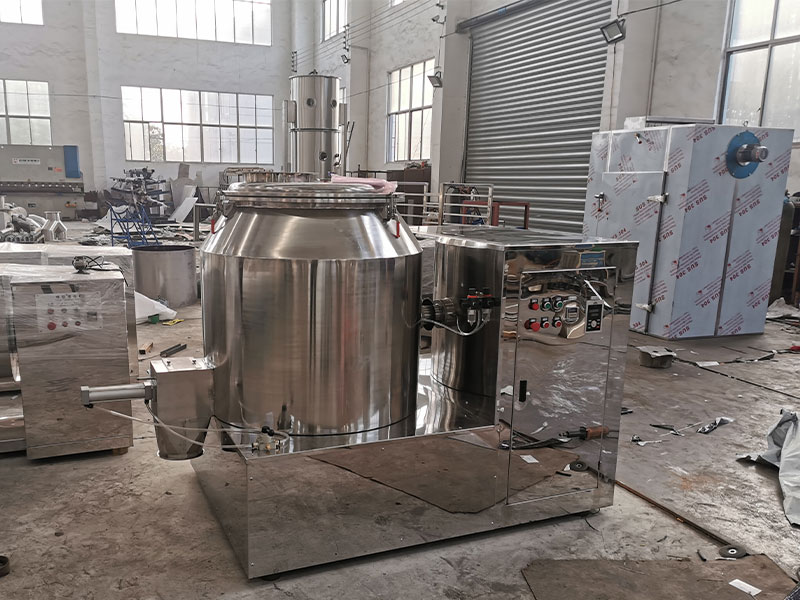

ZGH type vertical high-speed mixer

product introduction

High speed mixer is made up of powder material and adhesive mixed into wet soft material by bottom mixing slurry in cylindrical container, and then cut into uniform wet particles by side high speed grinding paddle.

working principle

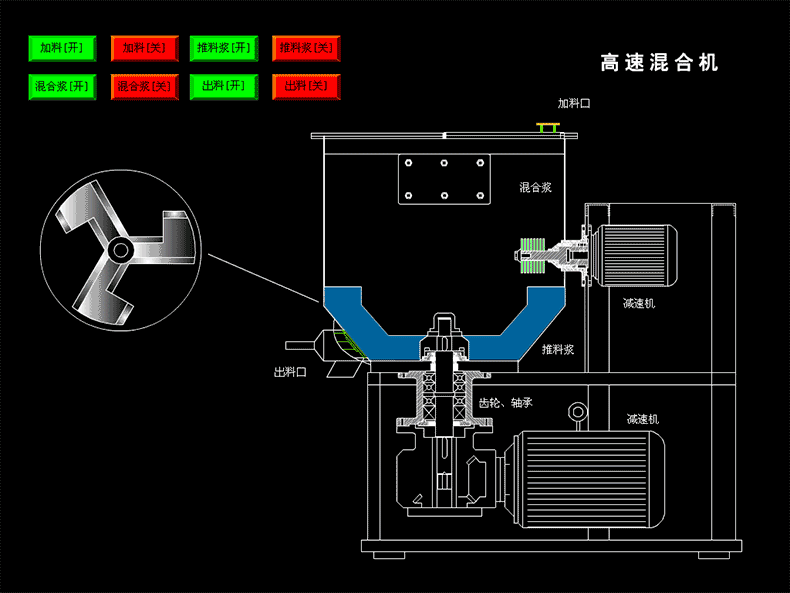

The ZGH vertical high-speed mixer consists of bottom-feeding leaf pulp and high-speed crushing leaf pulp. The feeding blade continuously feeds the bottom material upward along the cylinder wall.High-speed crushing leaf pulp breaks the materials sent by the leaf pulp. The material is circulated to form a vortex shape to achieve the purpose of evenly mixing the material in a short time.

product use
◆ ZGH vertical high-speed mixer is specially designed for powder or low-humidity materials, mixing efficiently, evenly and without dead corners;
◆ The material contact parts of this machine are made of stainless steel, and the mixing shaft is equipped with a sealing device, which can effectively prevent material cross-over and ensure the life of bearings and various transmission components.

equipment characteristics
Model ZGH vertical high-speed mixer is a newly developed high-efficiency mixer by our company integrating advanced technologies at home and abroad. Its main characteristics are as follows:
◆ Use the centrifugal force formed by the vertical high-speed rotating blade installed at the bottom of the machine body and act on the material to form a vortex shape with the outer periphery rolling upwards and the center sinking downwards, so that the inner and outer rings, upper and lower layers of the material are fully stirred and mixed;
◆ Use high-speed crushing blades installed on the side wall of the machine to break the rolling materials in the outer ring, and at the same time play a role in disturbance, increase the relative movement between the materials and improve the mixing effect;
◆ Due to the joint action of the above two blades, the material can be fully and evenly mixed in a short time, and its efficiency is unmatched by other domestic mixers;
◆ There is no dead corner in the mixing bin, quick discharge and easy cleaning;
◆ The material contact parts of the machine are all made of stainless steel. There will be no material volatilization, deterioration or loss during the mixing process, ensuring the process ratio requirements;
◆ This machine is suitable for mixing dry and wet materials in different proportions, especially for mixing and stirring various complex materials such as chicken essence, pharmaceutical granules, beverage granules, etc.
