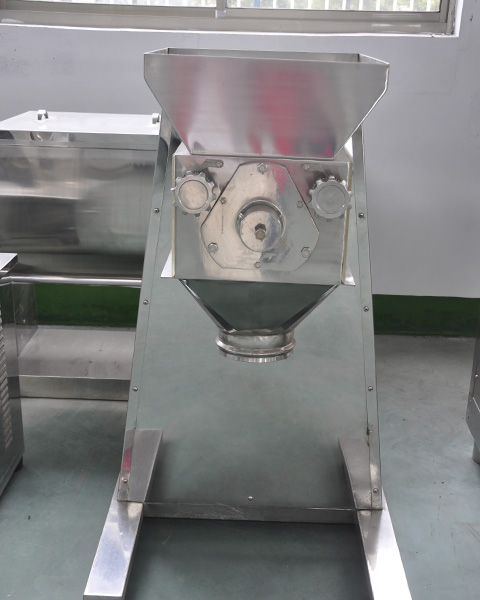

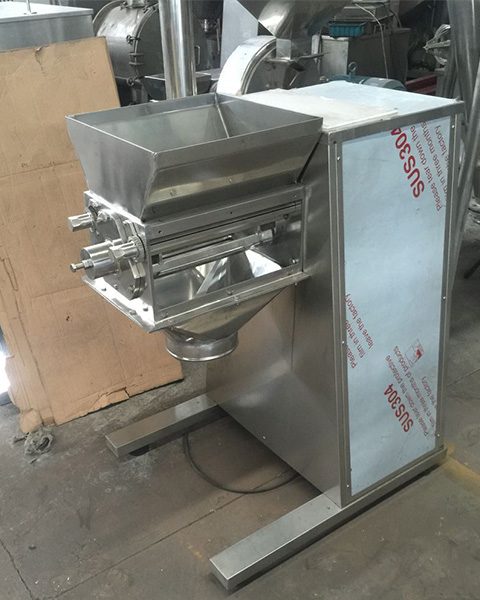

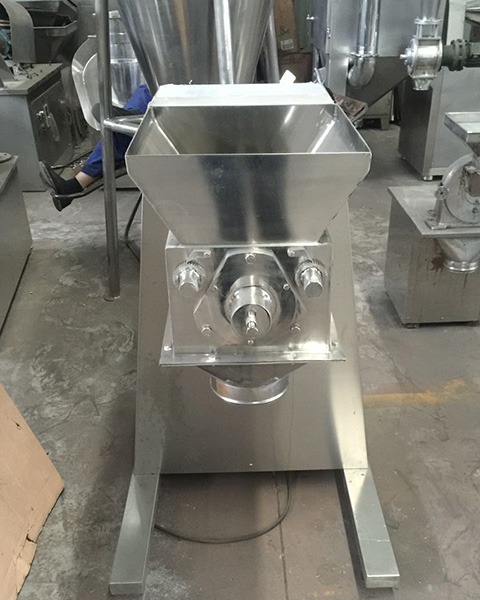

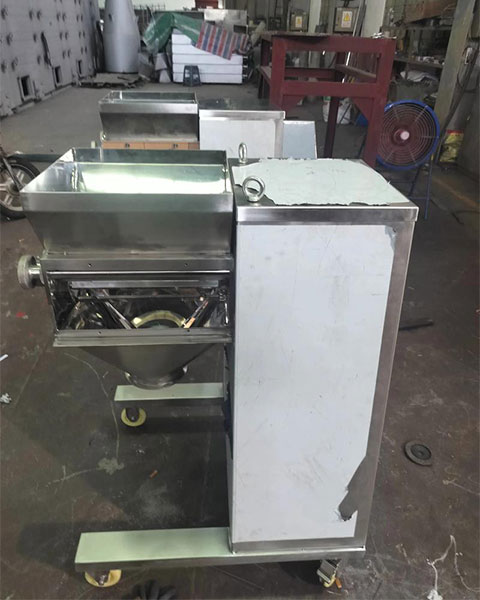

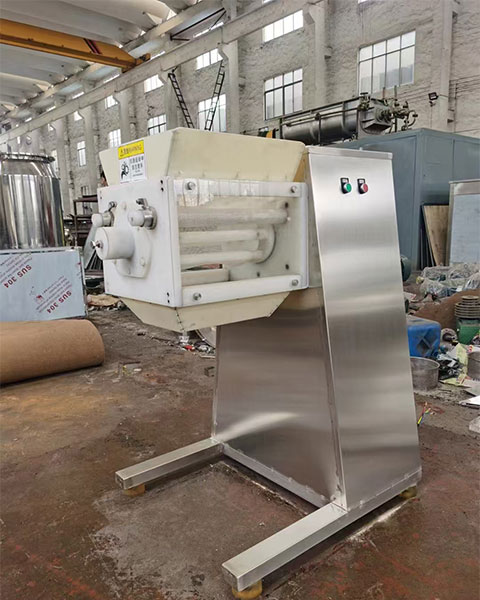

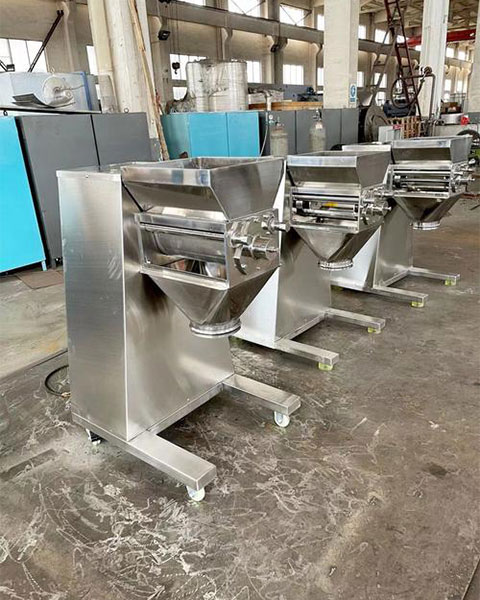

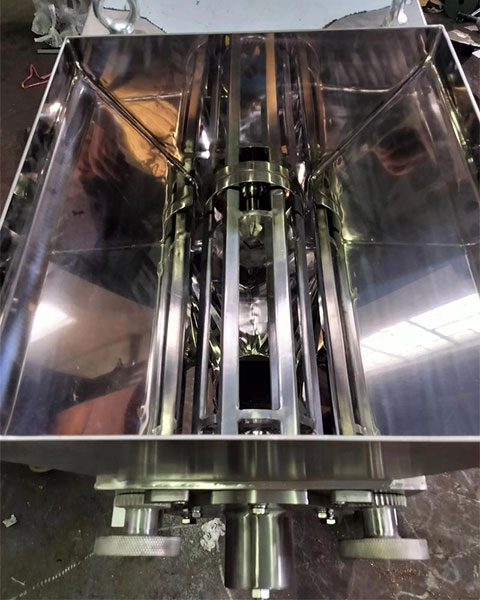

YK-Swing Pellet Machine
product Overview
YK series swinging pellet machine is mainly suitable for manufacturing various specifications of pellets in the pharmaceutical, chemical, food and other industries. After drying, it can be used to compress various shaped products. The machine can also be used to crush and condense dry materials into blocks. The material contact points are made of stainless steel, which has the advantages of beautiful appearance, convenient cleaning, simple operation and low energy consumption.
working principle
Make the stirred material into particles of the required size, or beat the agglomerated material into small particles.
Adapt materials
This machine is suitable for granulating in pharmaceutical, chemical, food, solid beverage and other industries.

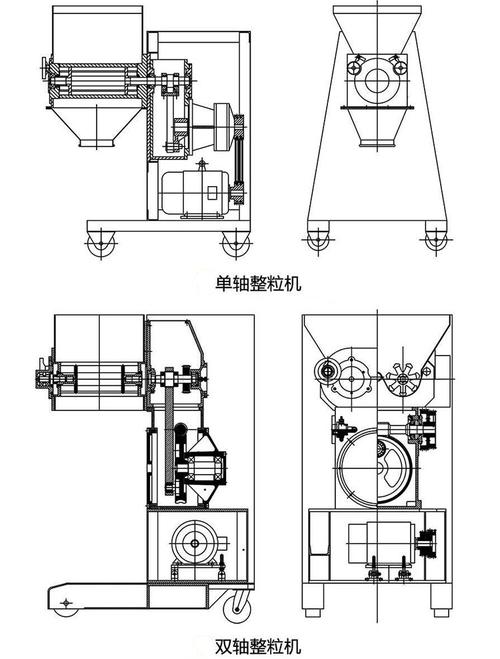

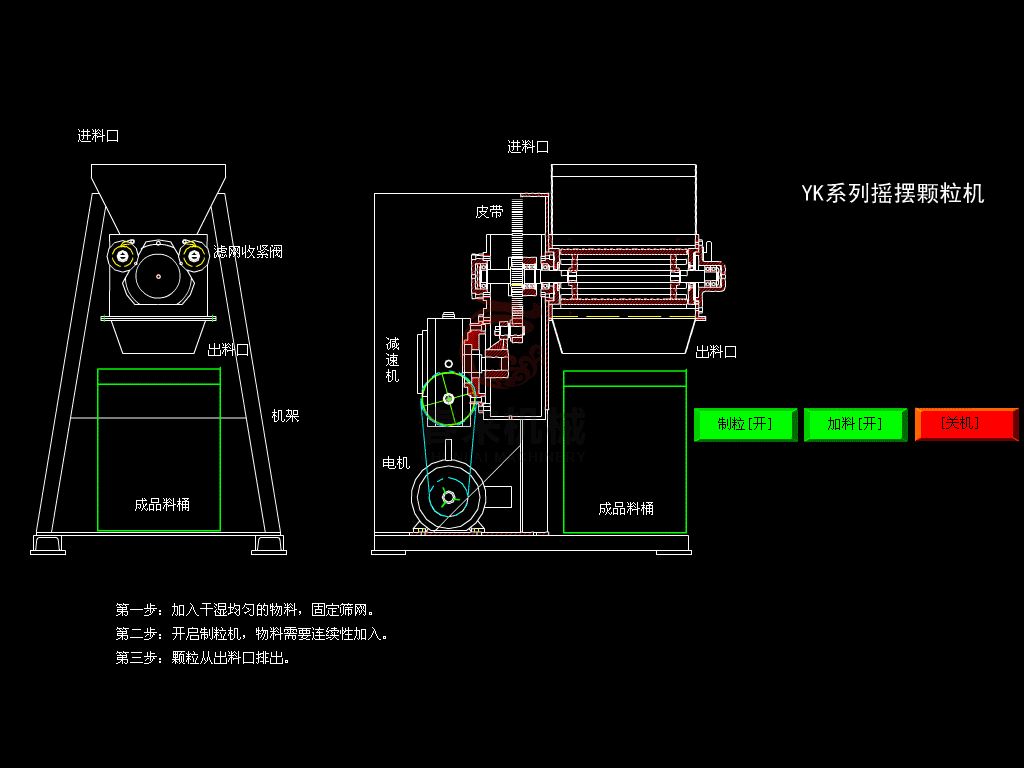

schematic structural diagram
technical specifications
| model | YK160 | YK320 |
| production capacity | 50-200 kg/h | 50-400 kg/h |
| motor power | 2.2kw | 7.5kw |
| drum rotation speed | 65rpm | 65rpm |
| swing-angle | 360o | 360o |
| drum diameter | Φ 160mm | Φ 320mm |
| weight | 450kg | 750kg |
| Exterior size | 1000 × 800 × 1300m | 1500 × 1200 × 1500m |
