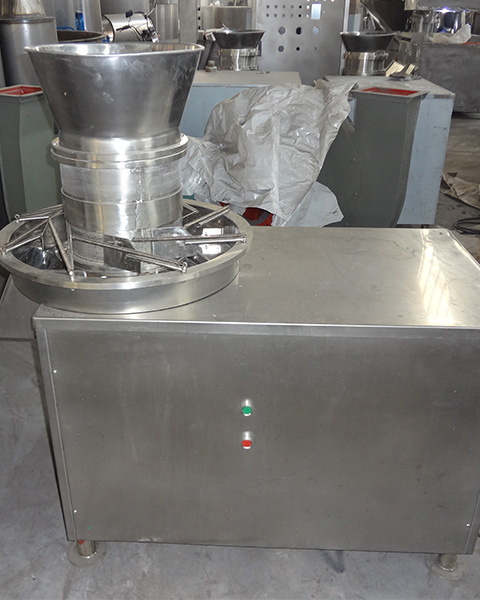

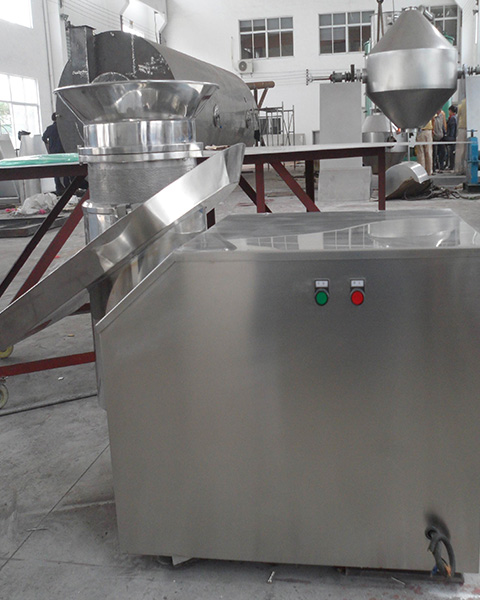

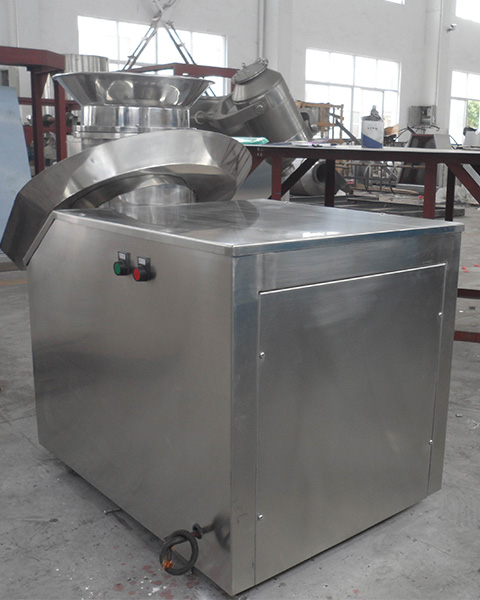

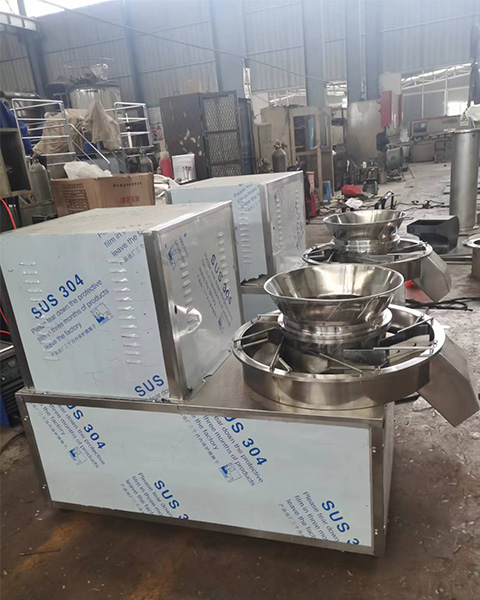

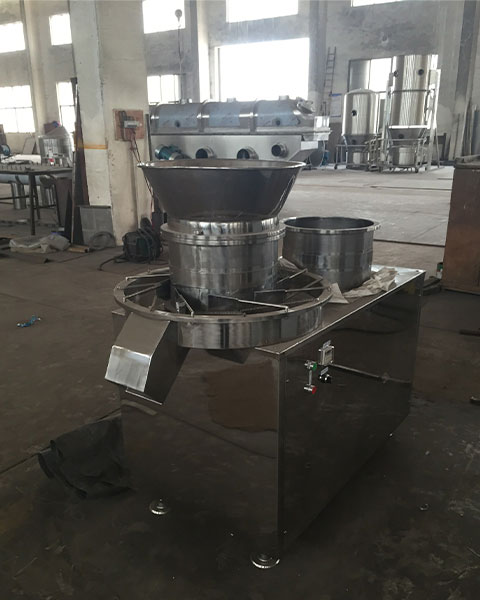

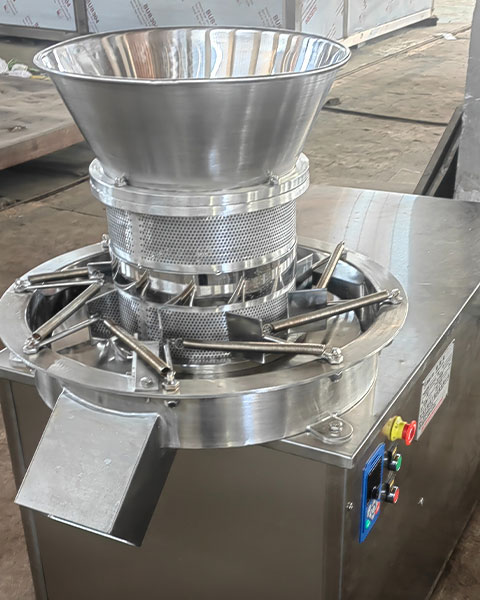

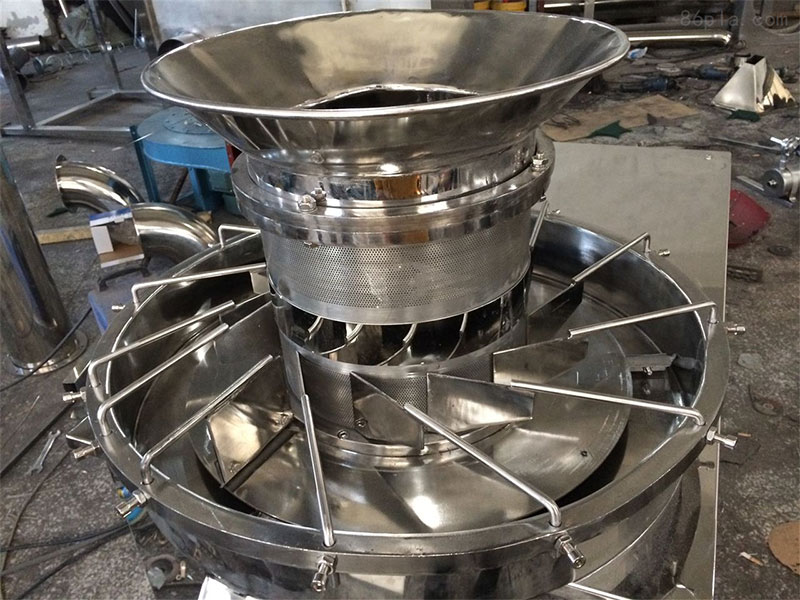

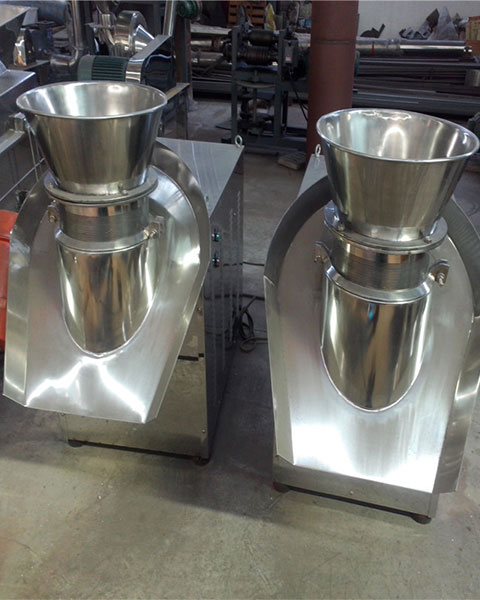

ZLB - Rotary Granulator
Application Scope This machine is used in industries such as pharmaceuticals, food, granules, chemicals, and solid beverages to granulate mixed materials into required granules, especially suitable for materials with high viscosity. Performance Features All parts of this machine that come into contact with materials are made of stainless steel. It features an attractive appearance, reasonable structure, high granulation yield, aesthetically pleasing granules, and automatic discharge, which prevents granule damage caused by manual discharge and is suitable for continuous production.Technic...
Application Scope
This machine is used in industries such as pharmaceuticals, food, granules, chemicals, and solid beverages to granulate mixed materials into required granules, especially suitable for materials with high viscosity.
Performance Features
All parts of this machine that come into contact with materials are made of stainless steel. It features an attractive appearance, reasonable structure, high granulation yield, aesthetically pleasing granules, and automatic discharge, which prevents granule damage caused by manual discharge and is suitable for continuous production.
Technical Specifications
| Roller size (mm) | 250 | 300B | 300D |
| Particle diameter (mm) | Φ2-2.2 (can be customized according to user needs) |
Φ1.2-3 (can be customized according to user needs) |
0.5-6 (can be customized according to user needs) |
| 外形尺寸（mm） | 700×540×1300 | 880×640×1300 | 1300×800×1200 |
| 电机功率（kw） | 3 | 4 | 7.5-6 |
| 重量（kg） | 350 | 400 | 780 |
|
生产能力（kg/h） |
100-200 | 140-400 | 300-600 |
注：因物料差异，表中产量仅供参考
