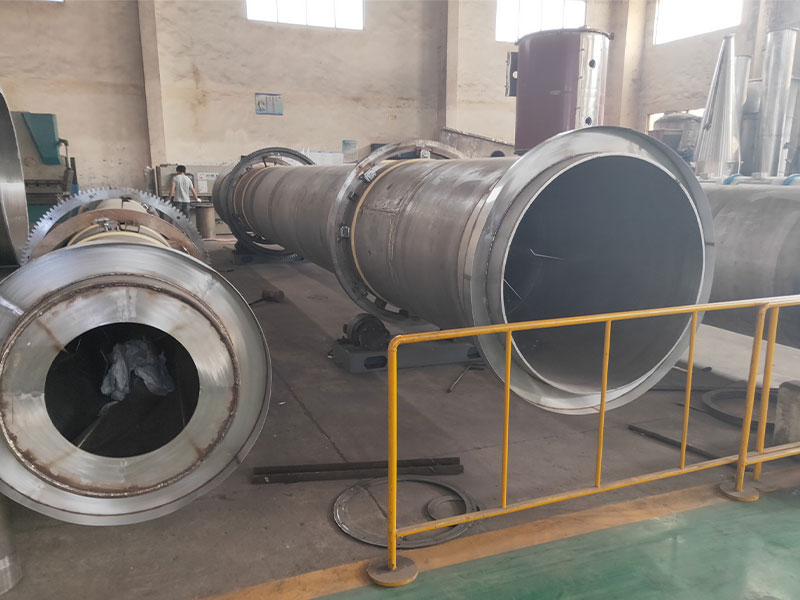

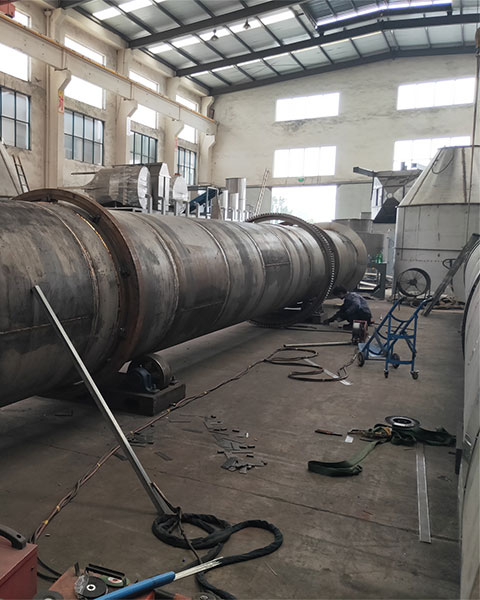

Rotary Barrel Hot Air Dryer Machine
Product Information
| Matal Material: | SUS316/SUS304/ CARBON STEEL ,ETC | Heat Source: | Steam / Electrical / Natural Gas / Diesel / Etc; |
|---|---|---|---|
| Temp: | 100-500℃ | Power: | Customized |
| Weight: | 3000-20000kg | Capacity: | 500kg- 5000kg |
| Name: | Rotary Barrel Hot Air Dryer Machine | Raw Material: | Nantural Gas / Coal,ect |
| Amount To Be Treated Kg/h: | 1000 | ||
| Highlight: |
Rotary Barrel Hot Air Dryer Machine,High Efficiency Hot Air Dryer Machine,5000kg Hot Air Dryer Machine |
||
Product Description

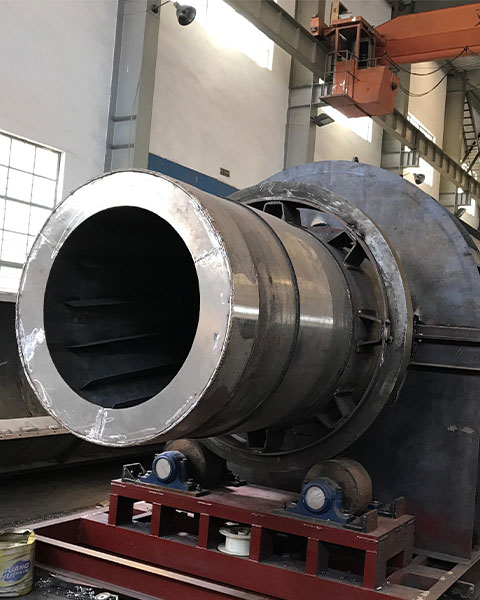

Barrel dryer is of high dry capacity, smooth rotation, low energy consumption, easy operation, high output and so on.
Barrel dryer is a kind of dryer with a rotating cylinde which is a little bit incline.Itis widly used in building material, metallurgy, chemical industuy, cement to dry the slag, limestone, coal powder,clay,etc.it is simply structure, polished manufacture, high capacity, low cinsumption, conveninent transportation and so on.

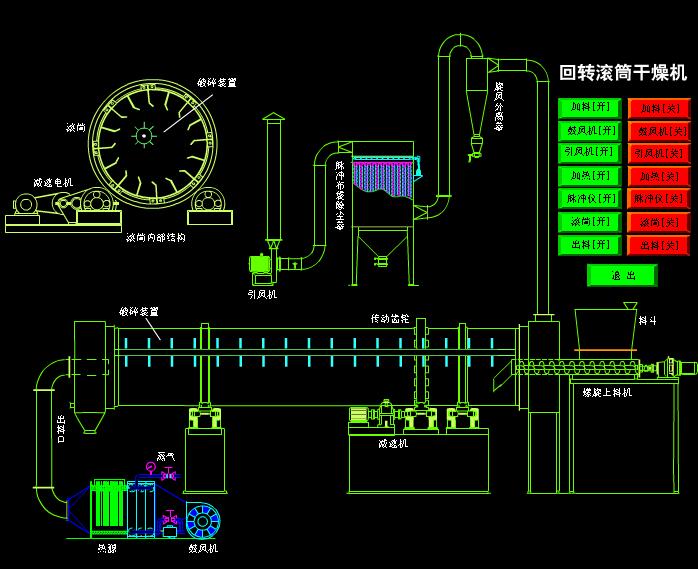

Wet material is loaded from one head of the dryer, and then it is stirred by the bafflers that is uniformly distributed in the barrel. Material is uniformly distributed and dispersed in the dryer, fully contact the hot air of parallel (or counter) flow, so the drying process is expedited, and the impulsion power of media transfer is enhanced. During the drying process, material is under the effect of angled baffler and hot air, moves to the star shape unloader that is at the other head of the dryer.
Product structure

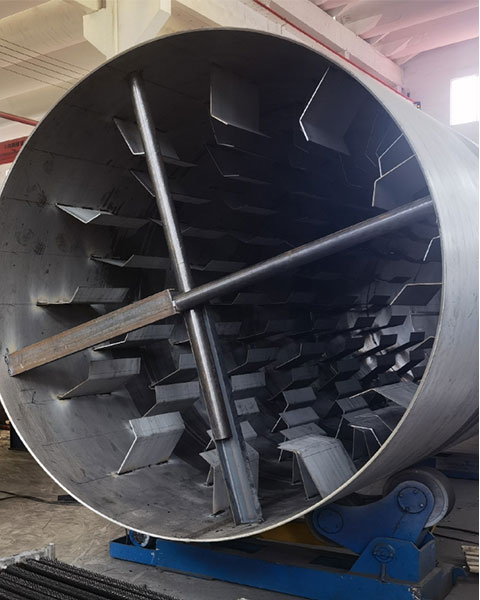

The rotary dryer is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.
Technical Specifications
| Model | Direct heating clockwise flow spec | Direct heating clockwise flow spec | Heat directly countercurrent spec |
Heat directly countercurrent spec |
Complex heat | Complex heat |
| Kinds of raw material | core | vesiccant | blast fumace | ammonium sulfate | phosphorus fertilizer | coal |
| Amount to be treated kg/h | 1000 | 466 | 15000 | 20000 | 12000 | 5000 |
| Primary moisture % | 30 | 13 | 6 | 1.5 | 5 | 6.5 |
| Final moisture % | 15 | 0.3 | 1 | 0.1 | 0.1 | 0.1 |
| Average diameter mm | 6.5 | 0.05 | 4.7 | 0.5-1.7 | 0.5 | 5 |
| Bulk density of raw material kg/m2 | 770 | 800 | 1890 | 1100 | 1500 | 750 |
| Amount of hot air kg/h | 39000 | 5400 | 10750 | 9800 | 6500 | 16000 |
| Temperature of air at inlet ℃ | 600 | 165 | 500 | 180 | 650 | 570 |
| Temperature of raw material at outlet ℃ | 42 | 100 | 70 | 80 | 75 | |
| Way of heating | gas | electric heating | heavy oil | fuel hot furnace | heavy oil | heavy oil |
| Loading efficiency % | 6.3 | 7 | 7.5 | 7.8 | 18 | |
| Revolution r.p.m | 4 | 4 | 3.5 | 3 | 4 | 2 |
| gradient m/m | 0.04 | 0.005 | 0.03 | 0.05 | 0.05 | 0.043 |
| Quantity of stirring-up rake | 12 | 24 | 12 | 22 | outer of inner cylinder 8 inner of out cylinder 16 |
6 12 |
| Diameter of dryer m | 2.0 | 1.5 | 2 | 2.3 | out cylinder 2 inner cylinder 0.84 | out cylinder 2.4 inner cylinder 0.95 |
| Length of dryer m | 20 | 12 | 17 | 15 | 10 | 16 |
| Driving power Kw | 22 | 7.5 | 15 | 11 | 11 | 15 |
Product features
1. The motorization level of the barrel is high, andhigh efficiency;
2. The resistance that the material passes through the barrel is less, and the power consumption is low.
3. Application capability to different characters of materials is high.
4. The operation is stable, the operation fee is low, and the uniformity of product drying is good.
5.The rotary dryer is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.
