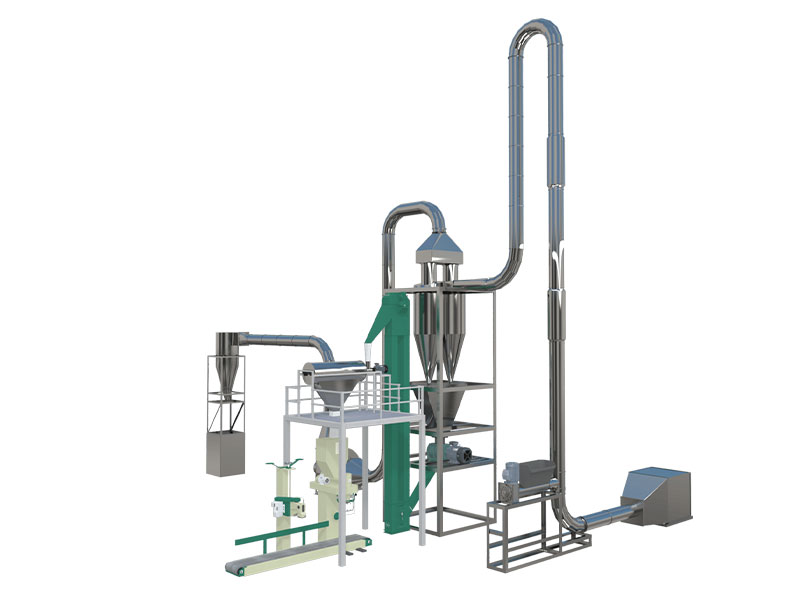

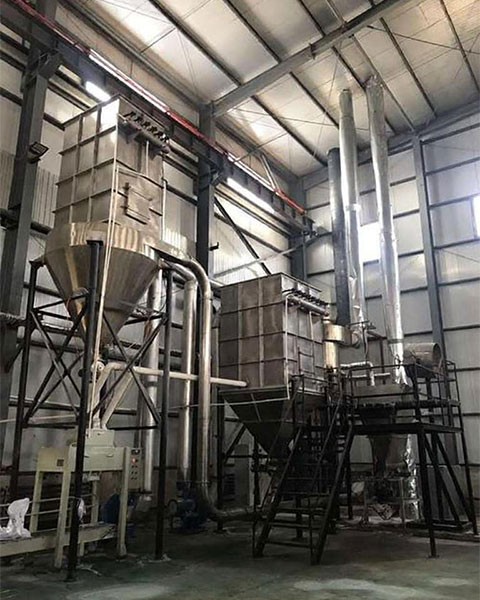

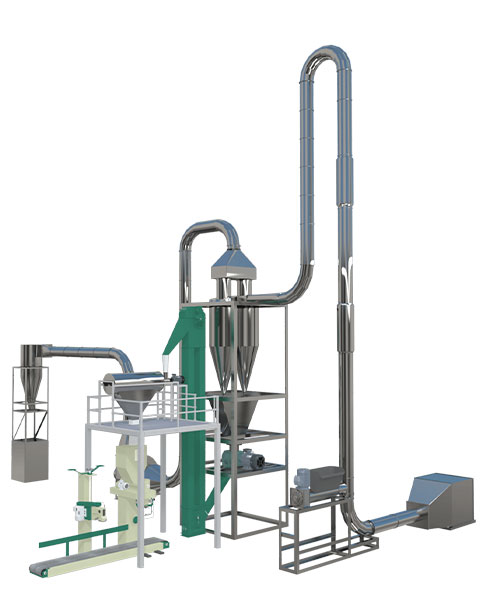

QG series airflow dryer
Product overview:

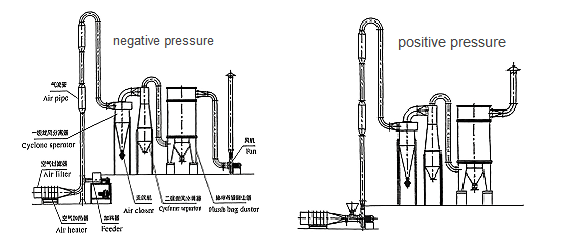

The QG series pulse airflow dryer is a large-scale drying equipment. It adopts the principle of instantaneous drying and uses the rapid movement of heat-carrying air to drive the wet material and suspend the wet material in the hot air. This strengthens the entire drying process and improves the heat and mass transfer rate. Almost all unbound moisture can be removed from the material dried by the airflow (For example, the water content of starch and other materials is ≤40%, and the output of finished products can be 13.5%), and the dried materials will not deteriorate, and the output will be significantly improved compared with that of ordinary dryers. Users can achieve high economic benefits in the short term.
Application scope:
The company produces and manufactures QG airflow drying equipment. The entire equipment of this product has high degree of automation, low investment, low energy consumption, relatively small manpower and factory area, and has a wide range of versatility. It is a better modern equipment.
Product features:
QG airflow dryer is suitable for drying and dehumidifying powdery materials in pharmaceutical, chemical, food, building materials, plastics and other industries, such as starch, fish meal, salt, distiller's grains, feed, gluten, plastic resin, mineral powder, coal powder, sugar chlorous acid, A·S·C benzoic acid, 2.3·acid, polychloroacetic acid, polypropylene, sodium sulfate, sodium metabisulfite and other materials.
Technical specifications:
| Specifications\Parameters | QG-50 | QG-100 | QG-250 | QG-500 | QG-1500 | |
| water evaporation | kg/h | 50 | 100 | 250 | 500 | 1500 |
| air filter | Area (m2) | 4 | 6 | 18 | 36 | 60 |
| number of | 1 | 1 | 1 | 2 | 2 | |
| Replacement time (h) | 200(filter bag) | 200(filter bag) | 200(filter bag) | 200(filter bag) | 200(filter bag) | |
| heater | Area (m2) | 30 | 43 | 186 | 365 | 940 |
| Steam consumed (kg) | 120 | 235 | 450 | 972 | 2430 | |
| Working pressure (Mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
| ventilator | model | 9-19-4.5 | 9-26-4.5 | 9-19-9 | 9-19-9 | 9-26-6.3 |
| number of | 1 | 1 | 1 | 2 | 4 | |
| Power (kw) | 7.5 | 11 | 18.5 | 37 | 125 | |
| feeder | Delivery volume (kg/h) | 150 | 290 | 725 | 1740 | 4350 |
| control mode | Electromagnetic speed-regulating motor | Electromagnetic speed-regulating motor | Electromagnetic speed-regulating motor | Electromagnetic speed-regulating motor | Electromagnetic speed-regulating motor | |
| Power (kw) | 0.6 | 1.1 | 3 | 3 | 7.5 | |
| cyclone separator | model | CLK-350-400 | CLK-500-450 | ZF12.5 | ZF12.5 | |
| Efficiency (%) | 98 | 98 | 98 | 98 | ||
| number | 2 | 2 | 2 | 3 | ||
| bag filter | number | 1 | 1 | 1 | 1 | 1 |
| water consumption | 3.6-20.0 | |||||
