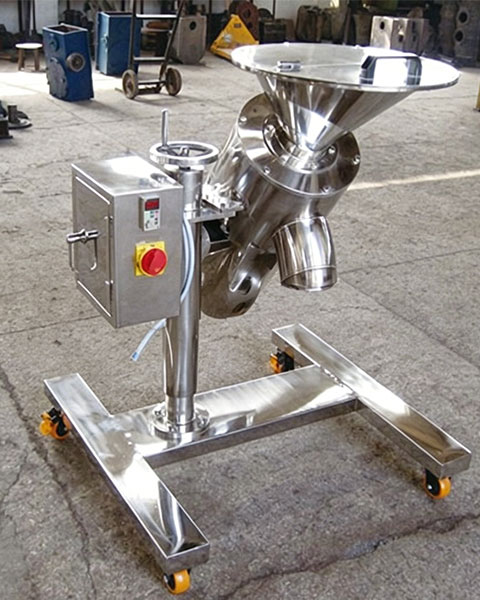

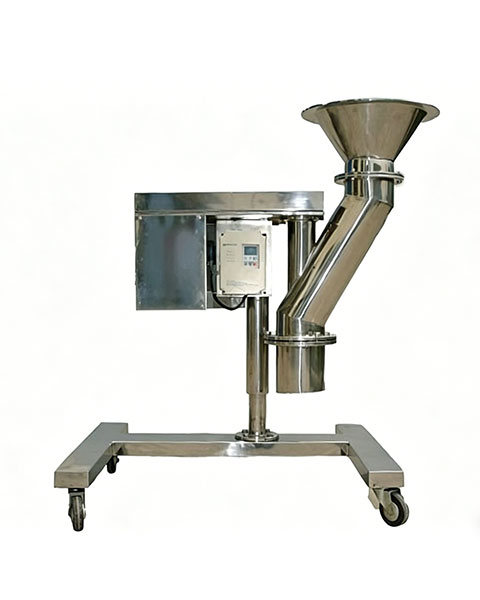

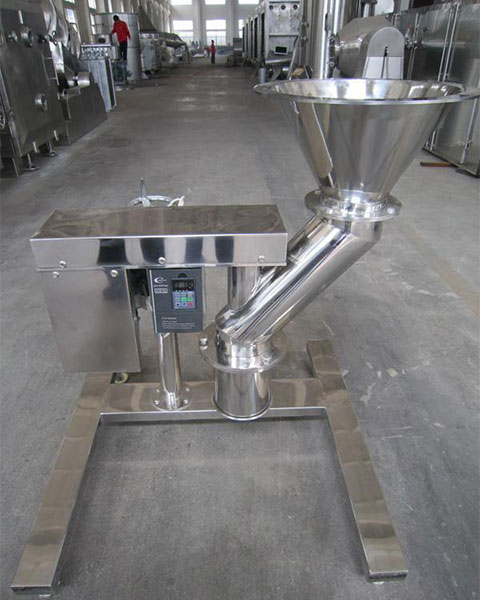

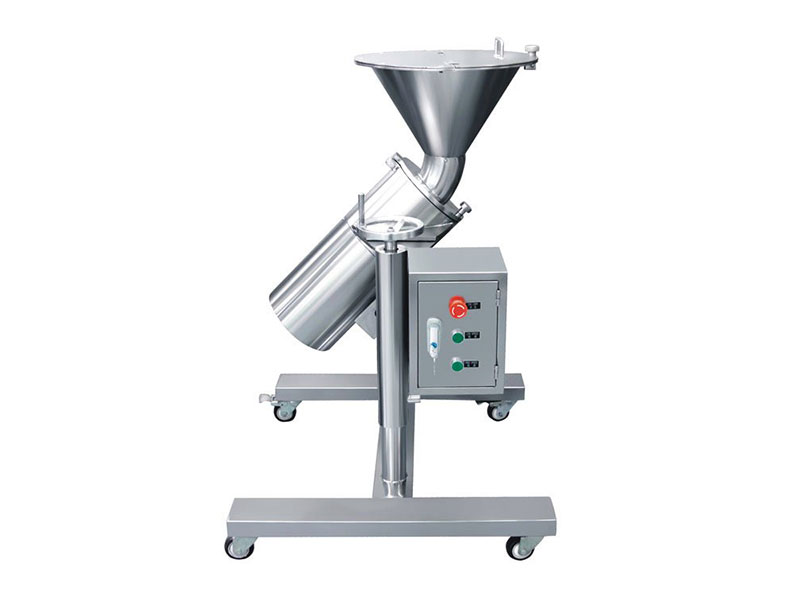

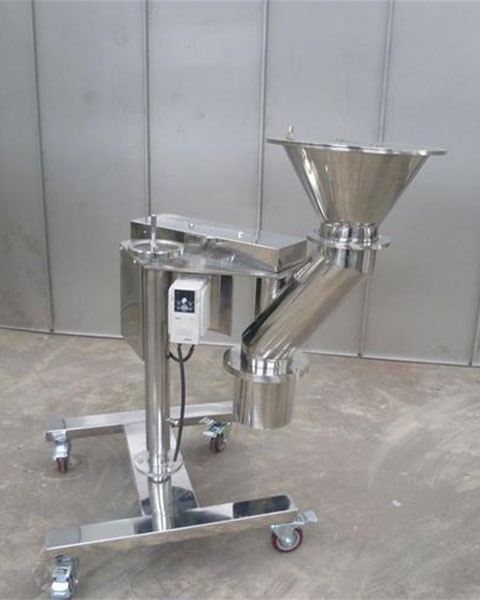

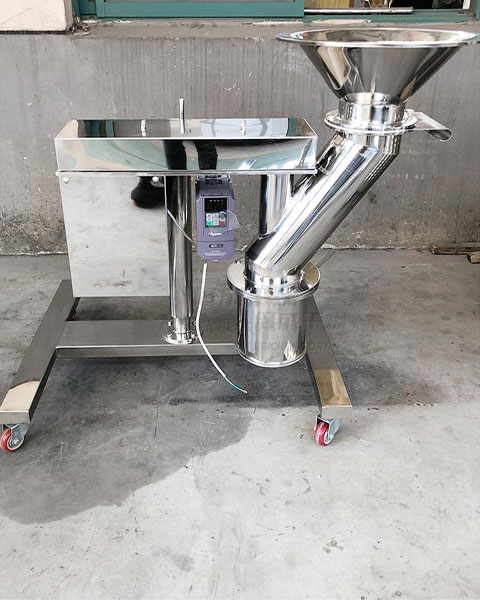

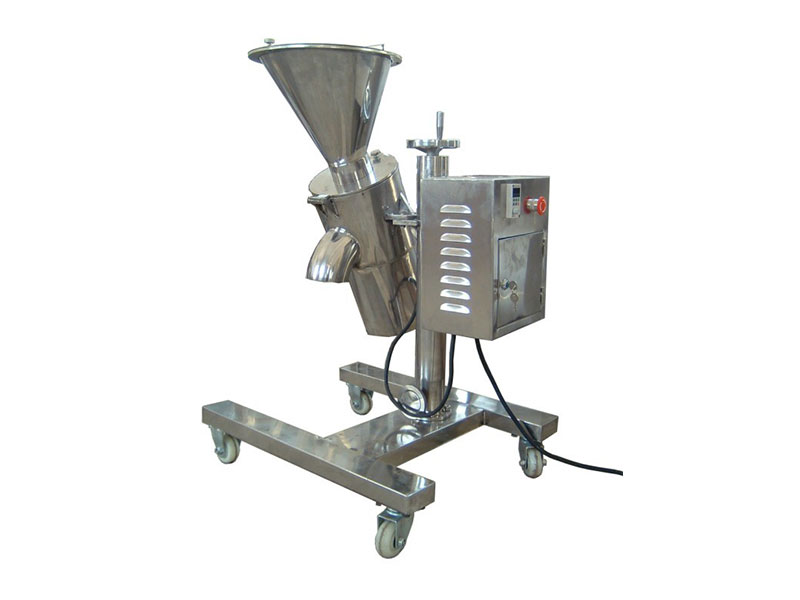

KZL-Rapid granulating (crushing) machine
Rapid granulating (pulverizer) machines are widely used in the pharmaceutical, chemical and food industries with good results. The machine has reasonably designed filter screens and rods, which can crush large and fragile materials. According to the principle of centrifugal force, a filter screen with special holes is used to carefully screen. The special friction filter screen rods can crush and filter solid particles, and at the same time grind large blocks of polymers.

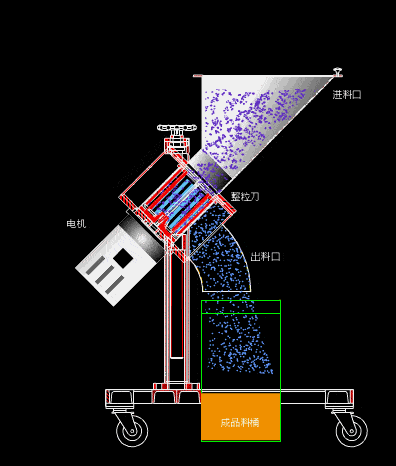

working principle
◎ Low fever at work. Less dust.
◎ The stator screen is made of stainless steel and is not easy to damage.
◎ The gap between crushing knife and screen can be adjusted.
◎ Can handle sticky, gelatinous, hot and humid materials.
Adapt materials
◎ Uniform and sizing dry and wet granules.
◎ Crushing and granulating of agglomerated materials.
◎ Wet material granulation.
◎ Crushing heat-sensitive materials.
technical specifications
| model | units | 100 | 180 | 300 |
| stator diameter | mm | 100 | 180 | 300 |
| length of the stator | mm | 98 | 178 | 298 |
| production capacity | kg/h | 20-150 | 100-1500 | 200-2500 |
| power | kw | 1.1 | 1.5 | 3 |
| speed | rmp | 180-1400 | 180-1400 | 200-1400 |
