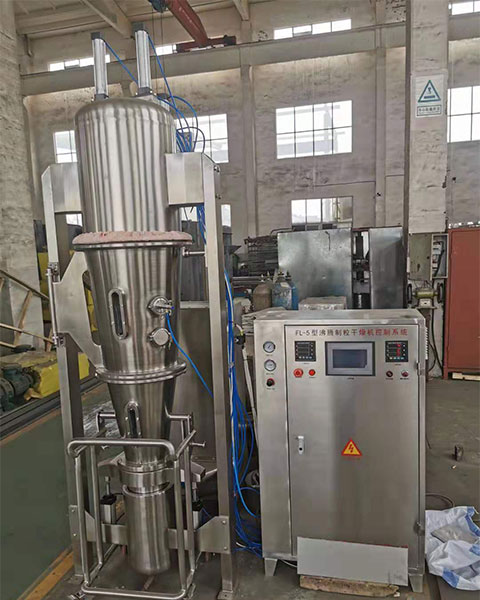

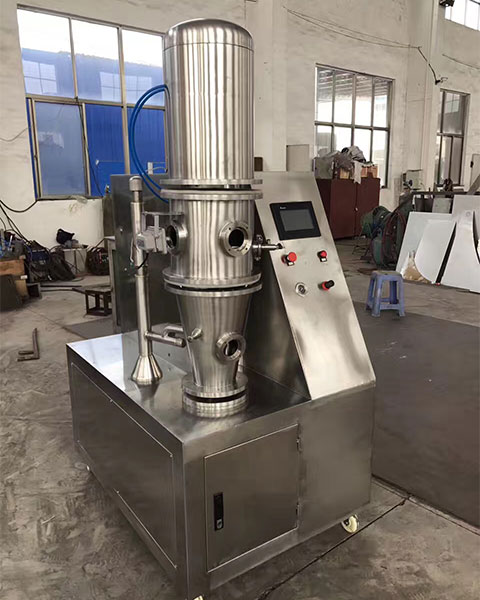

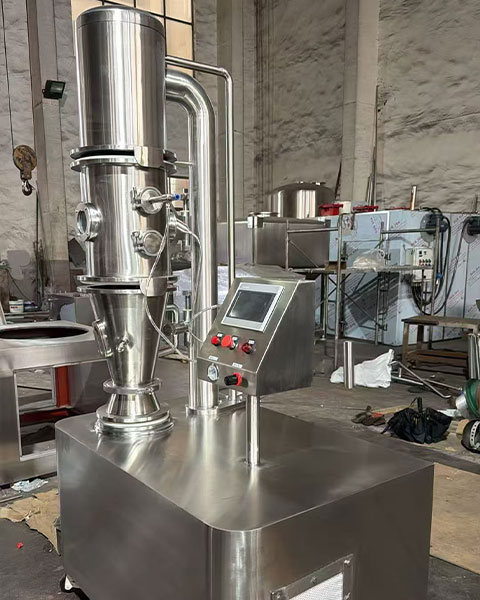

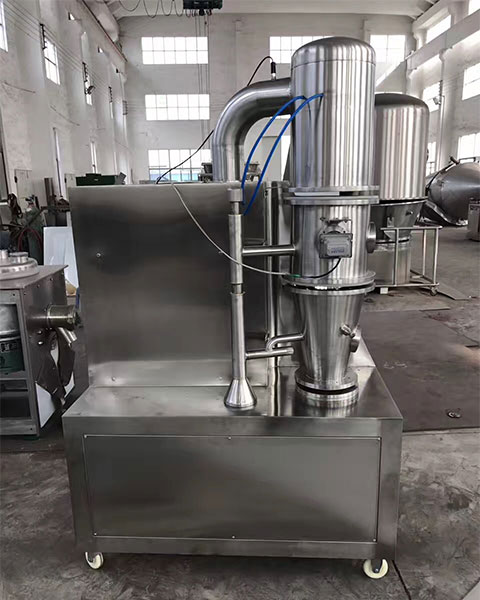

FLP Multi-functional granulating and coating machine
Product introduction:
FLP Multi-functional granulating and coating machine is a multi-functional equipment that integrates spray drying-granulation-centrifugal pelletization-fluid coating and drying. The machine is compatible with multiple process operations. It is especially suitable for granulating, pelletizing and coating of multiple varieties and formulations in the pharmaceutical, food, chemical and other industries.
Technical parameters:
|
project |
specifications |
|||||||||
|
name |
Unit |
10 |
15 |
20 |
30 |
45 |
60 |
90 |
120 |
|
|
vessel diameter |
mm |
700 |
800 |
900 |
1000 |
1100 |
1200 |
1400 |
1500 |
|
|
production capacity |
kg/batch kg/batch |
2.5～10 |
3～15 |
10～15 |
7.5～30 |
10～45 |
15～60 |
20～90 |
30～120 |
|
|
fan power |
kw |
5.5 |
7.5 |
7.5 |
7.5 |
11 |
11 |
15 |
18.5 |
|
|
steam |
pressure |
MPa |
0.4-0.6 |
|||||||
|
consumption |
kg/h |
35 |
42 |
47 |
60 |
140 |
160 |
180 |
240 |
|
|
compressed air |
pressure |
Mpa |
0.6 |
|||||||
|
consumption |
m 3 /min |
0.6 |
0.6 |
0.6 |
0.9 |
0.9 |
1.1 |
1.3 |
1.5 |
|
|
noise |
dB |
Fan isolation treatment shall not exceed 75 dB |
||||||||
|
Host size |
H 1 (mm) |
2790 |
3350 |
3650 |
3720 |
3720 |
3850 |
3950 |
4190 |
|
|
H 2 (mm) |
340 |
490 |
540 |
590 |
640 |
690 |
740 |
790 |
||
|
H 3 (mm) |
2570 |
3130 |
3430 |
2300 |
3500 |
2630 |
372 |
3975 |
||
|
φ 2(mm) |
250 |
250 |
250 |
280 |
280 |
280 |
280 |
315 |
||
Product features:
-
Integrate multiple functions of granulating, pelletizing and coating.
-
Granulate powder materials.
-
Coating powder materials.
-
Powder materials are pelletized.
-
Traditional Chinese medicine spray granulation and coating.
-
Prepare large granule granules of 10-30 meshes.
-
Films, enteric, sustained and controlled release coatings for powders, granules, and pills.
-
Taste mask, moisture proof, oxidation proof, water proof, heat proof, coloring, isolation coating.
-
Dry powdery, granular and agglomerated materials.
