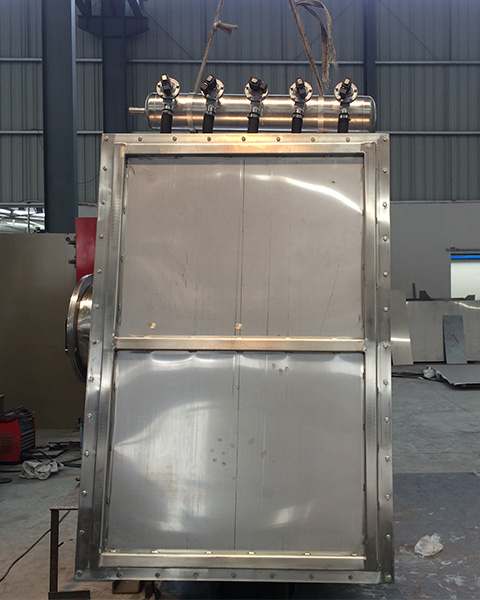

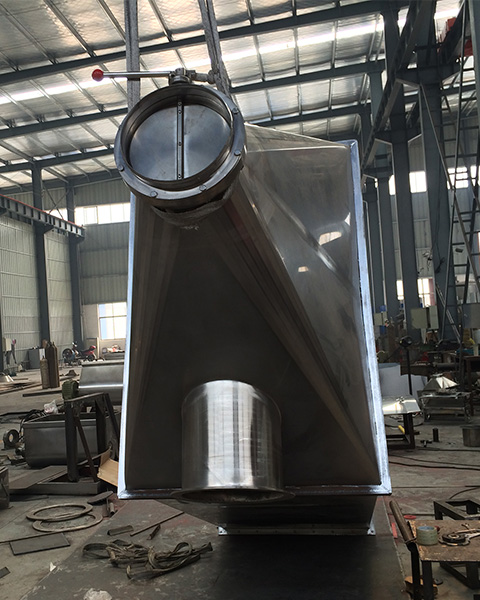

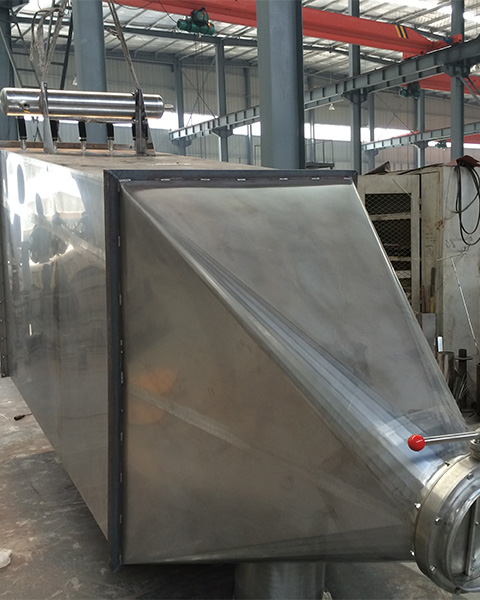

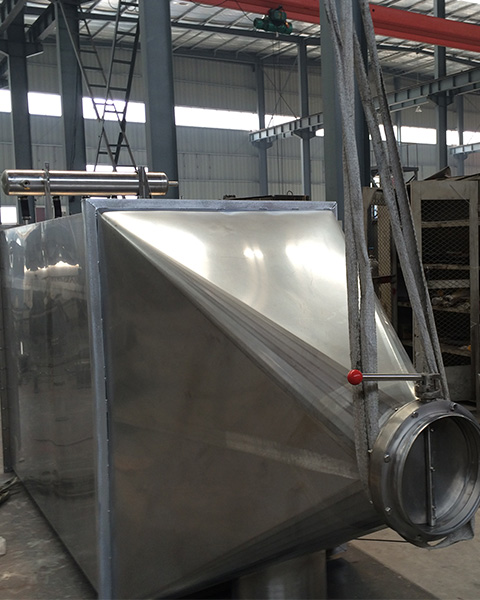

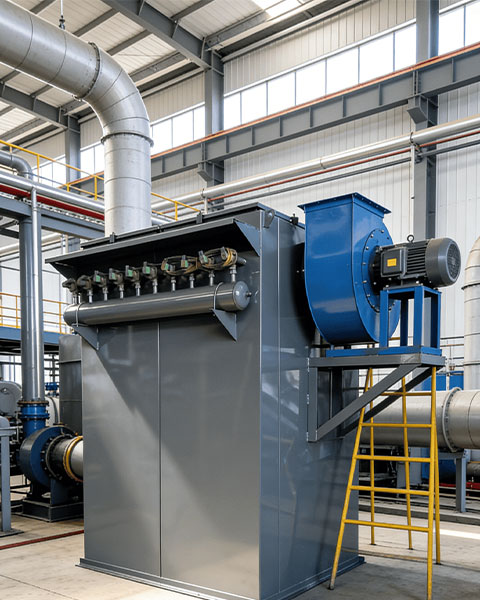

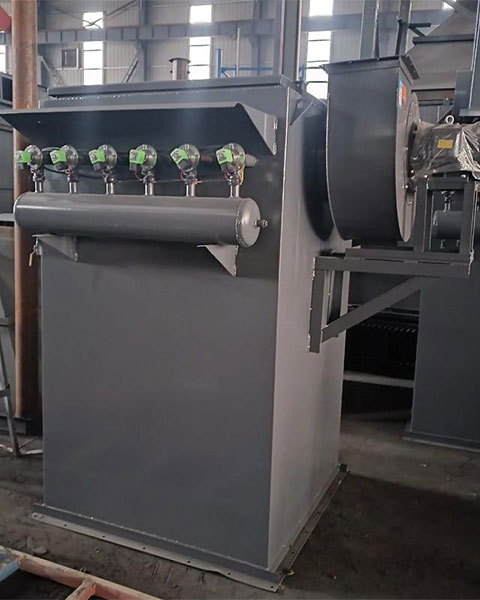

MF-Pulse Bag Filter
The MF-II square pulse bag dust collector is an improvement and modification based on the MF-I model. In addition to having the characteristics of high dust removal efficiency, large processing air volume, stable performance, and convenient operation and maintenance, it also has the characteristics of better use effect, difficulty in accumulating powder, and a wide application range than the Model I. It is widely used for ventilation, dust removal and dust recovery in food, feed, metallurgical and chemical industries, building materials, medicine and other industries.
product introduction
The MF-II square pulse bag filter is an improved and modified based on the MF-I model.
performance characteristics
In addition to having the characteristics of high dust removal efficiency, large air volume, stable performance, and convenient operation and maintenance, it also has the characteristics of better use effect than Type I, is not easy to accumulate powder, and has a wide application range.
Adapt materials
It is widely used for ventilation, dust removal and dust recovery in food, feed, metallurgical and chemical industries, building materials, medicine and other industries.
technical specifications
| parameters | model | ||||||
| MF48 | MF60 | MF72 | MF84 | MF96 | MF108 | MF120 | |
| Filtration area (m2) | 36.2 | 45.2 | 54.3 | 63.3 | 72.4 | 81.4 | 90.5 |
| Number of filter bags (only) | 48 | 60 | 72 | 84 | 96 | 108 | 120 |
| Filter air volume (m3/h) | 6510-8680 | 8130-10840 | 9770-13000 | 11400-1520 | 13000-17370 | 14650-19530 | 16290-21700 |
| Number of solenoid valves (only) | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
| Power (kw) | 1.1 | 1.1 | 1.1 | 1.1 | 1.5 | 2.2 | 2.2 |
| Filter bag specification (mm) | 120×2000 | ||||||
| Filtration wind speed (m/min) | 3-4 | ||||||
| Air leakage rate (%) | ≤5 | ||||||
| Injection pressure (Mpa) | ＞0.4-0.6 | ||||||
| Equipment resistance (Pa) | ＜1200 | ||||||
| Dust removal efficiency (%) | ≥99.9 (Select suitable filter materials according to dust characteristics) | ||||||
technical specifications
| parameters | model | ||||||
| MF48 | MF60 | MF72 | MF84 | MF96 | MF108 | MF120 | |
| A | 3530 | 3530 | 3530 | 3530 | 3530 | 3530 | 3530 |
| B | 3287 | 3287 | 3287 | 3287 | 3287 | 3287 | 3287 |
| C | 2552 | 2552 | 2552 | 2552 | 2552 | 2552 | 2552 |
| D | 1160 | 2260 | 1160 | 1160 | 1160 | 1160 | 1160 |
| E | 1350 | 1650 | 1950 | 2250 | 1350 | 2850 | 3150 |
| F | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 |
| G | 635 | 635 | 635 | 635 | 635 | 635 | 635 |
| H | 325 | 475 | 625 | 775 | 925 | 1075 | 1225 |
| I | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 |
| J | 790 | 790 | 790 | 790 | 850 | 850 | 850 |
| K | 824 | 824 | 824 | 824 | 824 | 824 | 824 |
| M × N | 400×500 | 500×500 | 600×500 | 700×600 | 700×600 | 800×600 | 800×600 |
| P × Q | 432×530 | 530×530 | 630×530 | 728×630 | 728×630 | 832×630 | 832×630 |
| R × S | 1050×1050 | 1350×1050 | 1650×1050 | 1950×1050 | 2250×1050 | 2250×1050 | 2850×1050 |
