Product introduction:

In the crushing process in chemical, food and other industries, due to the influence of the different original shapes of the materials, many materials cannot complete the entire crushing process in one go through rough crushing, fine crushing and screening processes. Based on this situation, the characteristics of various raw materials and existing crushing equipment were comprehensively analyzed, and the CSJ rough crusher series was carefully developed.

This machine is suitable for rough crushing of various chemicals, food and other tough and hard materials, such as rubber, plastics, traditional Chinese medicine raw materials, epoxy resin, sugar, etc. Crushing is a process that uses mechanical force to destroy the cohesion of solid materials to break them and reduce the geometric size of solid materials.

The machine has the advantages of simple structure, small and reasonable, convenient operation, low noise, low energy consumption, good crushing effect, and uniform particles. It is an ideal equipment for rough crushing processing.

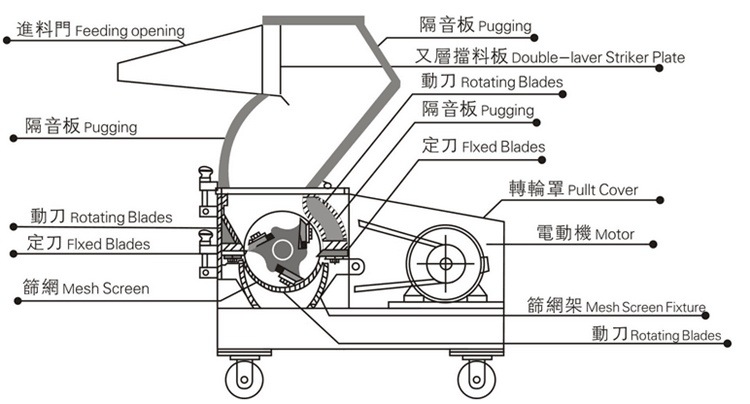

The machine consists of four parts: a frame, a motor, a feeding hopper and a crushing mechanism. The material directly enters the crushing chamber through the feeding hopper, and is crushed by the strong shearing of the movable knife and the fixed knife rotating at a medium speed. The size of the obtained particles is controlled by adjusting the gap between the movable knife and the fixed knife. Particles that meet the requirements are discharged from the discharge port through the control of the screen, while materials that do not meet the requirements continue to be sheared and crushed in the crushing room until the requirements are met.

product use
  This machine is suitable for pharmaceutical, chemical, metallurgical, food, construction and other industries. It can process hard and hard materials, including plastic, copper wire, Chinese herbal medicine, rubber, etc., and can also be used as supporting equipment for the pre-processing of micro pulverizer and ultra-fine pulverizer.

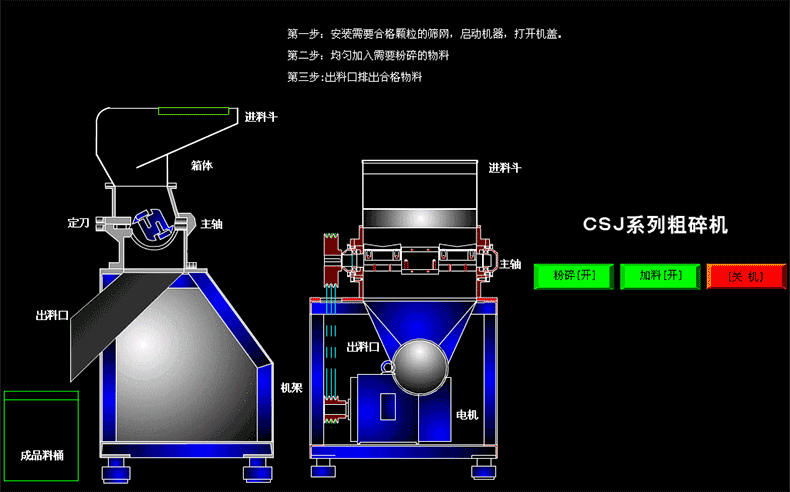

working principle
  The material is fed into the crushing chamber from the feeding hopper. After the impact of the blade and the knife holder, the rotating knife and the fixed knife are cut and crushed at the same time. Due to the rotating centrifugal force, the material automatically flows out of the outlet.

Product features:

The machine adopts a vertical crushing mechanism, which is not limited by material viscosity, hardness, softness, etc., and can play a good crushing effect on a variety of materials.

technical parameters

CSJ coarse crusher, coarse crusher, coarse crusher
