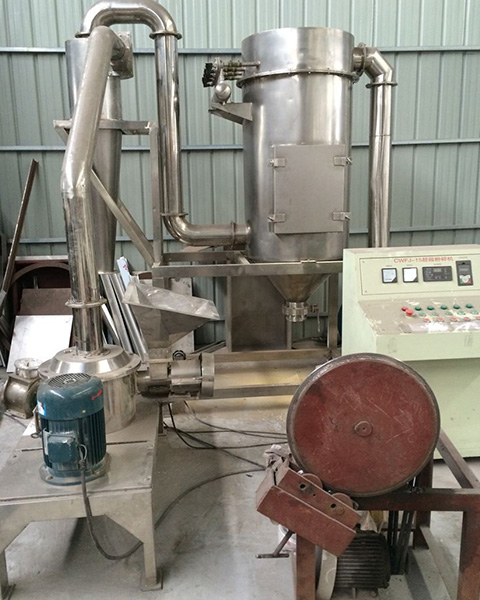

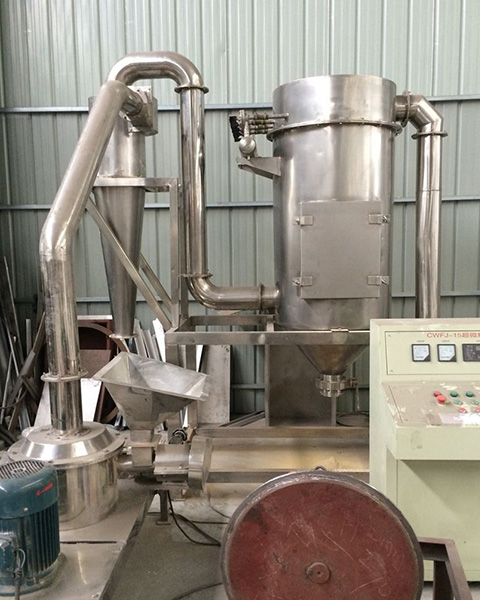

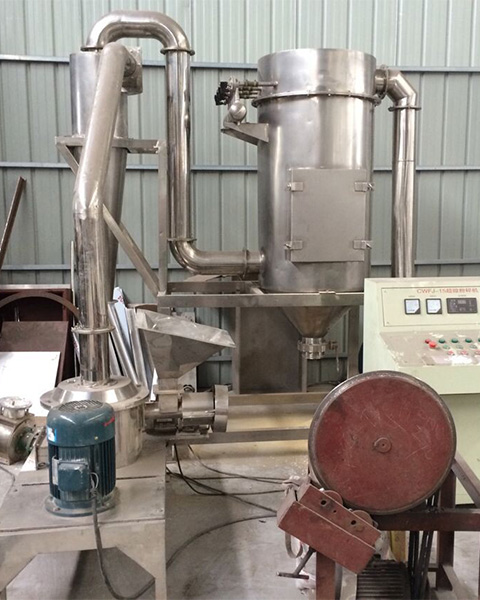

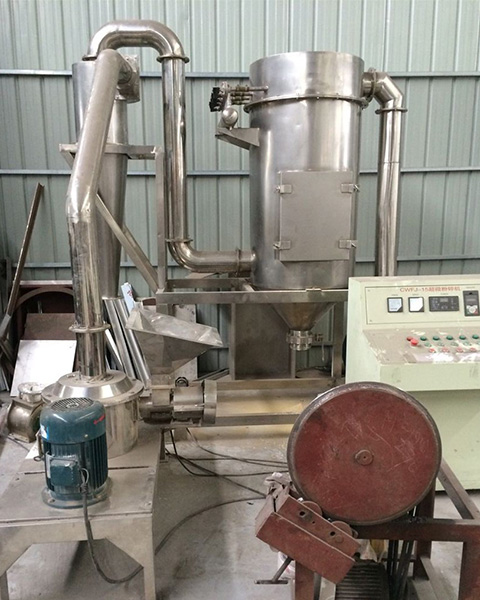

CWFJ-15 - Ultrafine Pulverizer
OverviewThis machine consists of three parts: the main machine, auxiliary machine, and electric control box. It features air classification, no sieve, uniform particle size, and other properties. The production process is continuous and is suitable for crushing brittle materials in industries such as pharmaceuticals, chemicals, and food.Technical Specifications
Model
Unit
WFJ-15
WFJ-18
WFJ-32
Production capacity
kg/h
10-200
20-450
60-800
Feed particle size
mm
<10
<10
<15
Discharge particle size
mesh
80-320
80-450
80-450
Total power
kw
13.5
17.5
46
Main speed
r/min
3800-6000
3800...
Overview

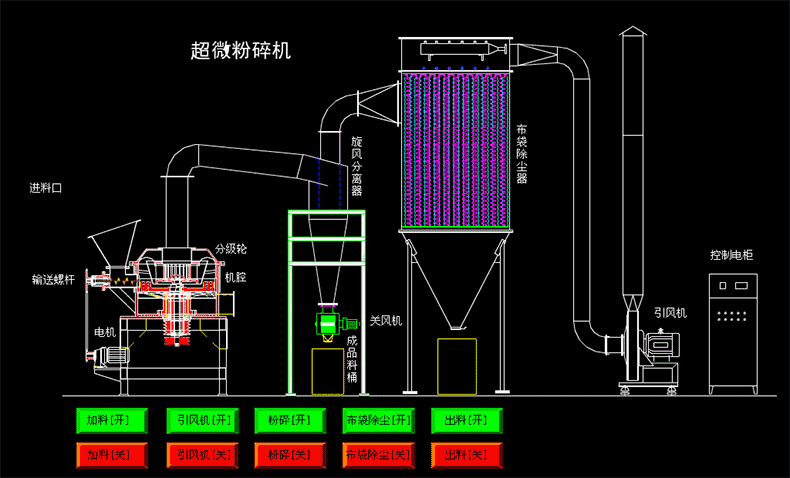

This machine consists of three parts: the main machine, auxiliary machine, and electric control box. It features air classification, no sieve, uniform particle size, and other properties. The production process is continuous and is suitable for crushing brittle materials in industries such as pharmaceuticals, chemicals, and food.
Technical Specifications
| Model | Unit | WFJ-15 | WFJ-18 | WFJ-32 |
| Production capacity | kg/h | 10-200 | 20-450 | 60-800 |
| Feed particle size | mm | <10 | <10 | <15 |
| Discharge particle size | mesh | 80-320 | 80-450 | 80-450 |
| Total power | kw | 13.5 | 17.5 | 46 |
| Main speed | r/min | 3800-6000 | 3800-6000 | 3800-4000 |
| Dimensions | mm | 4200×1200×2700 | 4700×1200×2900 | 9000×1500×3800 |
| Weight | kg | 850 | 980 | 1500 |
