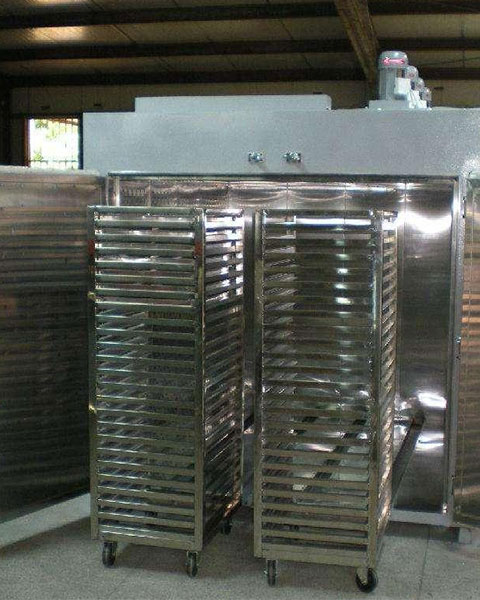

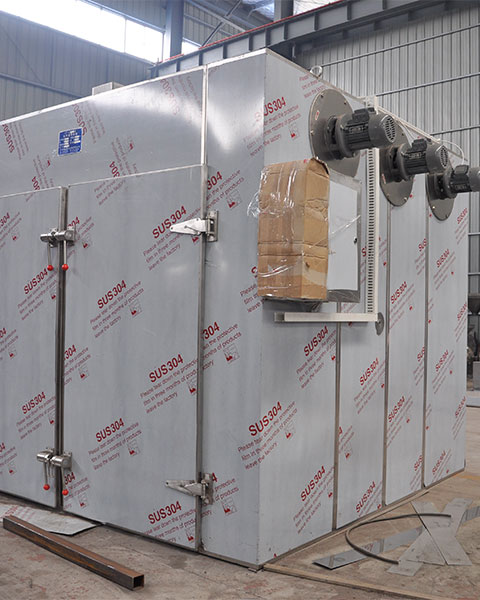

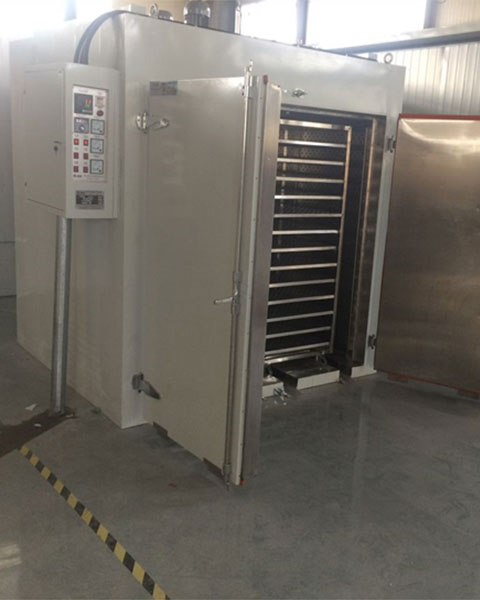

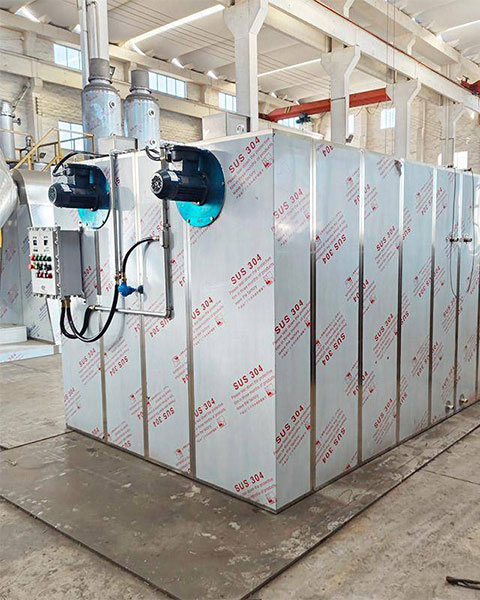

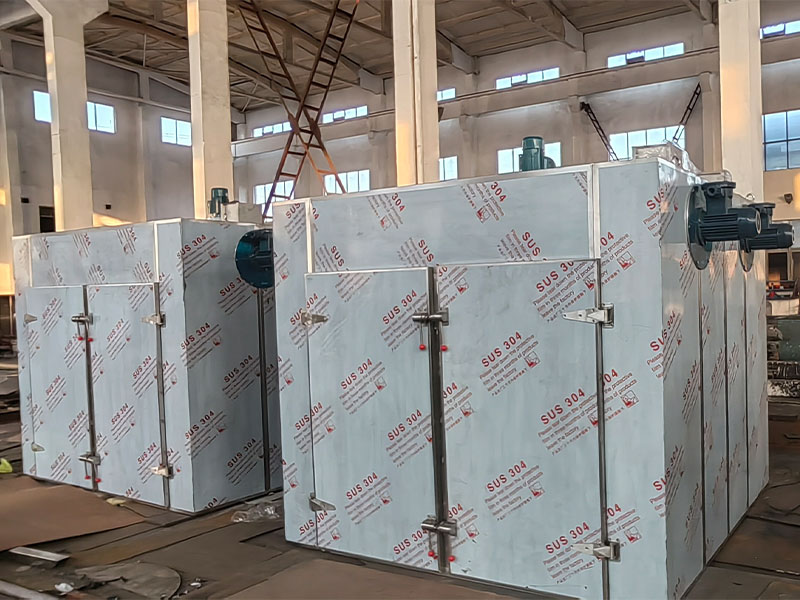

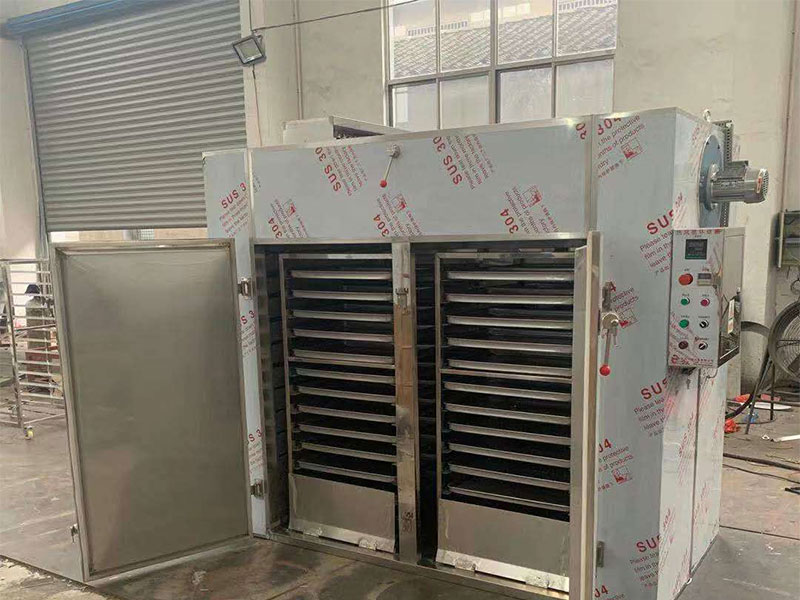

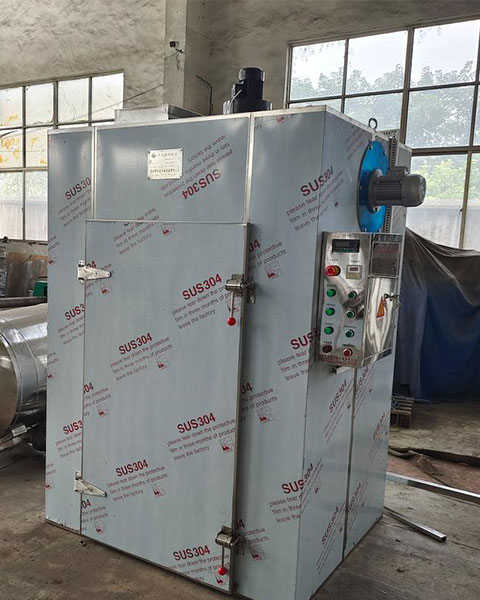

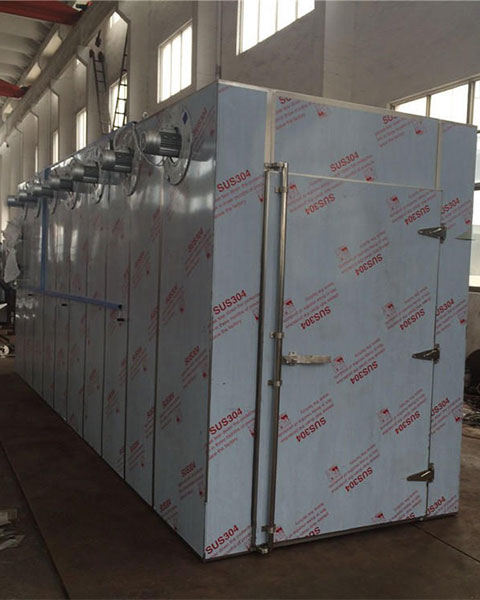

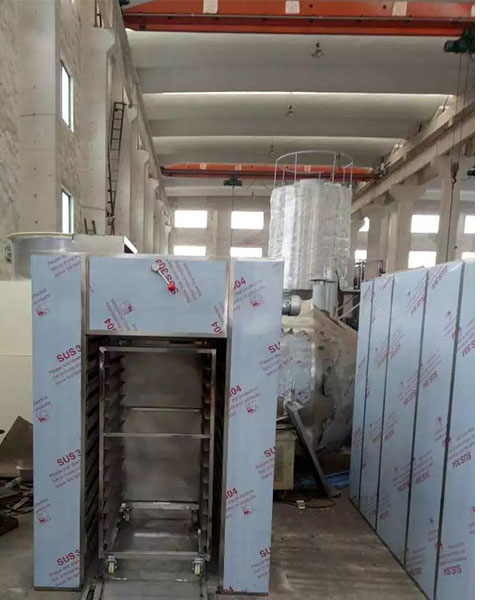

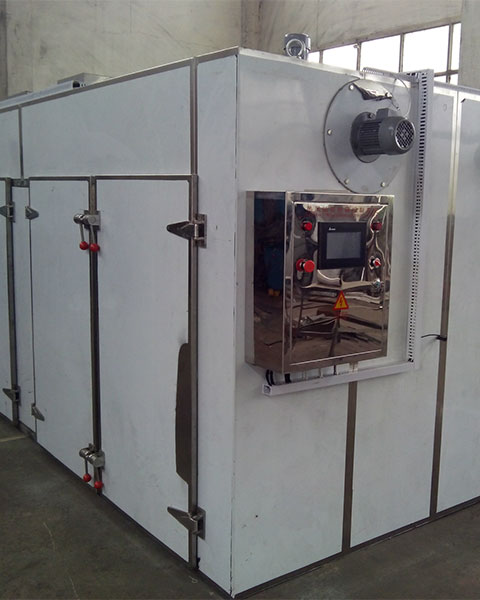

CT-C-Hot air circulation oven
The thermal efficiency of the CT-C hot air circulation oven is as high as 35-45%(up to 50%), far exceeding that of traditional drying rooms. Adopt low-noise axial fan and automatic temperature control system, suitable for pharmaceutical, chemical, and food industries. Supports multiple heat sources of steam, electricity, and far infrared, and provides multiple models and specifications.
1. Product overview: Industry standard hot air circulation drying technologyThe CT-C series hot air circulation ovens are benchmark products in my country's drying industry. Its successful design has brought the domestic oven technology to the advanced level at home and abroad. The core of the equipment isFully enclosed circulation systemandLow-noise and high-temperature resistant axial flow fanThe application of, increasing the thermal efficiency of traditional drying rooms from only 3-7% to35-45%(Some models can reach 50%). This not only greatly saves energy consumption, but also brings significant economic benefits to the company. At present, this series of products has implemented the RXH industry standard issued by the State Administration of Medicines.2. Core performance and technical advantages (Performance Highlights)
2.1 Excellent energy efficiencyThrough the forced ventilation and hot air internal circulation design, most of the heat energy is retained in the box, and the thermal efficiency is doubled. Compared with traditional drying equipment, it can save companies a lot of fuel or electricity costs.2.2 Precise temperature controlThe equipment is equipped with advanced automatic temperature control system, and the temperature difference between the upper and lower parts of the box can be controlled within± 2 ° C Within. User optionalcomputer control system, achieve more intelligent process management.2.3 Flexible heating methodsVarious heat source options are available based on user site conditions:
-
Steam heating: The operating temperature is 50 - 140°C (maximum 150°C), and the common pressure is 0.02 - 0.8 MPa.
-
Electric heating: The operating temperature is 50 - 350°C, and the practical power is only a part of the rated power (such as Type I 15 kW, practical 5 - 8 kW/h).
-
Far-infrared heating: Suitable for materials that require rapid drying.
2.4 Uniform drying and low-noise operationUse an adjustable air distribution plate to adjust the air flow distribution in the box to ensure uniform drying of the material. The whole machine runs well, has low noise, and is convenient to install and maintain.3. Technical Specifications
Industry standard model
commonly used models
Drying volume per time (kg)
Matching power (kW)
Heat dissipation area (m²)
Air volume (m³/h)
Overall size (width × depth × height mm)
Number of baking trays
RXH-14-C
CT-C-I
120
0.45
20
3450
2300×1200×2000
48
RXH-27-C
CT-C-II
240
0.9
40
6900
2300×2200×2000
96
RXH-41-C
CT-C-III
360
1.35
80
10350
3430×2200×2000
144
RXH-54-C
CT-C-IV
480
1.8
100
13800
4460×2200×2290
192
RXH-5-C
CT-C-O (small)
25
0.45
5
3450
1130×1100×1750
16
4. Wide range of industry applications (Application Industries)
CT-C hot air circulation oven is a realUniversal drying equipment, is widely used in material heating, solidification and dehydration in the following fields:
industry
Typical application materials
pharmaceutical industry
Sterilization of raw materials, crude drugs, traditional Chinese medicine pieces, extracts, granules, granules, water pills, packaging bottles
Chemicals and pigments
Pigment dyes, plastic resins, electrical components, paint drying
Food and agricultural and sideline
Dehydrated vegetables, dried fruits, sausages, agricultural and sideline products
other
Aquatic products, light industrial products
5. Ordering instructions and services
Steam heating: The operating temperature is 50 - 140°C (maximum 150°C), and the common pressure is 0.02 - 0.8 MPa.
Electric heating: The operating temperature is 50 - 350°C, and the practical power is only a part of the rated power (such as Type I 15 kW, practical 5 - 8 kW/h).
Far-infrared heating: Suitable for materials that require rapid drying.
|
Industry standard model
|
commonly used models
|
Drying volume per time (kg)
|
Matching power (kW)
|
Heat dissipation area (m²)
|
Air volume (m³/h)
|
Overall size (width × depth × height mm)
|
Number of baking trays
|
|---|---|---|---|---|---|---|---|
|
RXH-14-C
|
CT-C-I
|
120
|
0.45
|
20
|
3450
|
2300×1200×2000
|
48
|
|
RXH-27-C
|
CT-C-II
|
240
|
0.9
|
40
|
6900
|
2300×2200×2000
|
96
|
|
RXH-41-C
|
CT-C-III
|
360
|
1.35
|
80
|
10350
|
3430×2200×2000
|
144
|
|
RXH-54-C
|
CT-C-IV
|
480
|
1.8
|
100
|
13800
|
4460×2200×2290
|
192
|
|
RXH-5-C
|
CT-C-O (small)
|
25
|
0.45
|
5
|
3450
|
1130×1100×1750
|
16
|
|
industry
|
Typical application materials
|
|---|---|
|
pharmaceutical industry
|
Sterilization of raw materials, crude drugs, traditional Chinese medicine pieces, extracts, granules, granules, water pills, packaging bottles
|
|
Chemicals and pigments
|
Pigment dyes, plastic resins, electrical components, paint drying
|
|
Food and agricultural and sideline
|
Dehydrated vegetables, dried fruits, sausages, agricultural and sideline products
|
|
other
|
Aquatic products, light industrial products
|
-
Non-standard customization: For specially required working conditions (such as temperatures higher than 140°C or lower than 60°C), please indicate when ordering, we can provide non-standard customized services.
-
Supporting services: The equipment is equipped with drying trucks and drying trays as standard when leaving the factory to ensure that users can put them into use after arrival.
