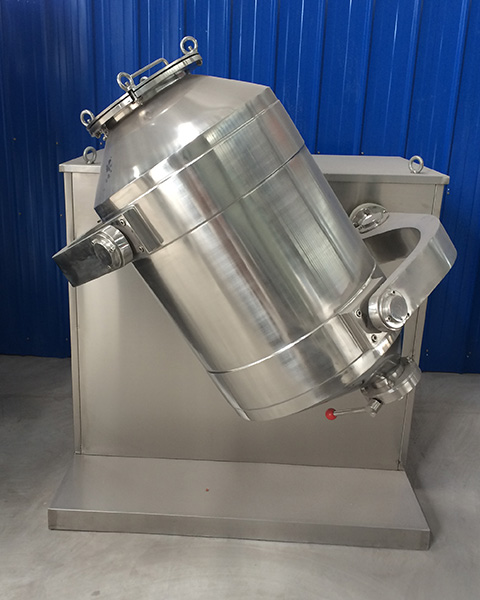

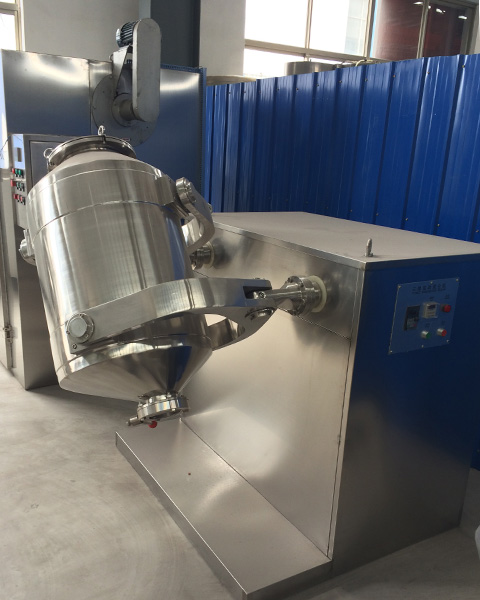

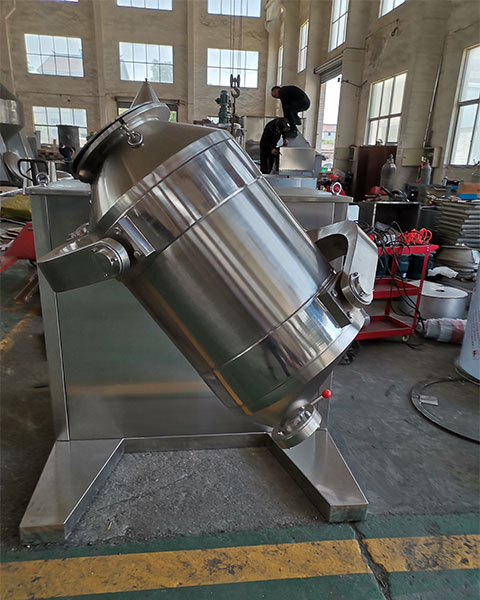

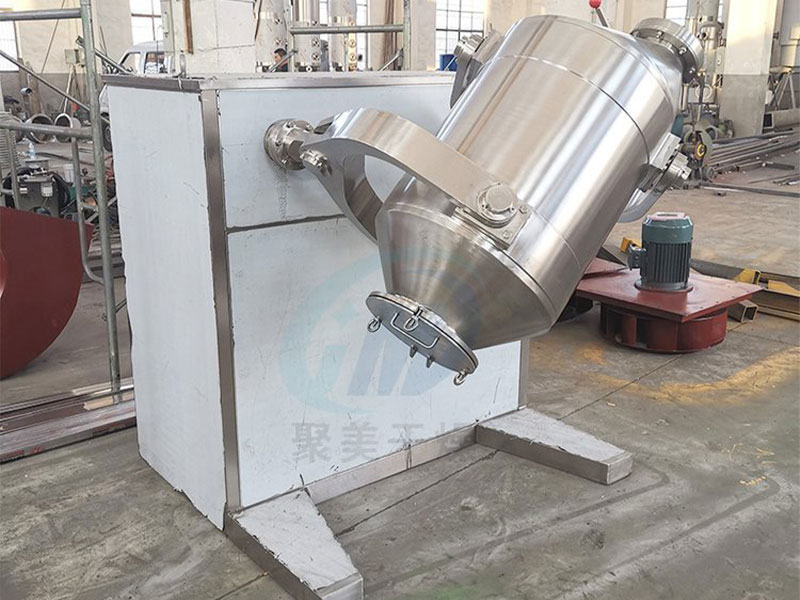

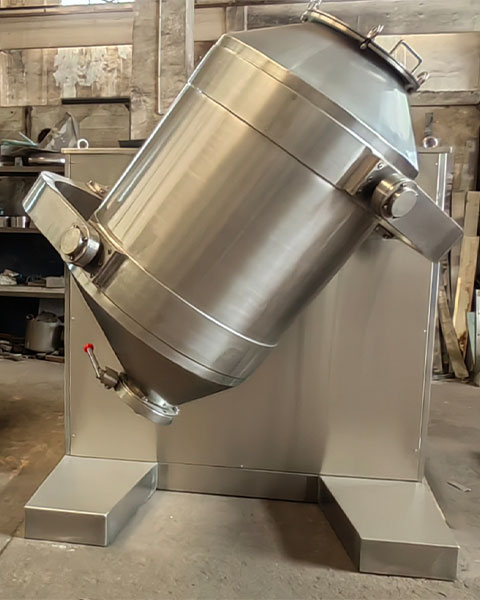

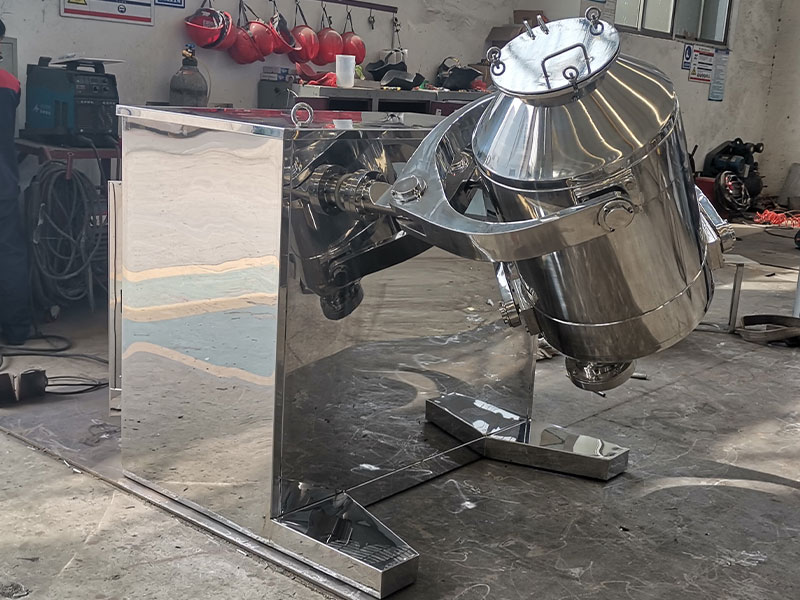

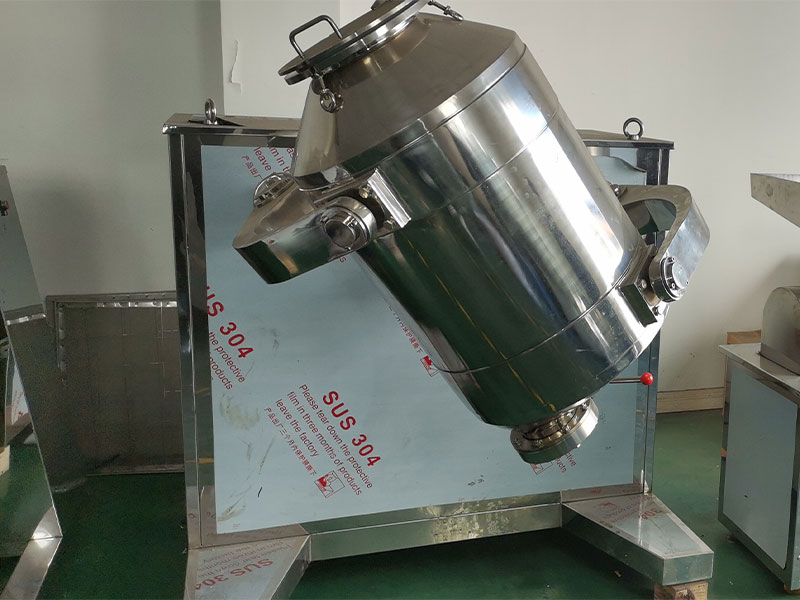

product introduction

When the three-dimensional motion mixer is in operation, because the barrel body of the three-dimensional motion mixer has multi-directional running actions, the flow and diffusion of various materials are accelerated during the mixing process, and at the same time, the proportion of materials generated by centrifugal force in general mixers is reduced. The phenomenon of segregation and accumulation, and there is no dead corner in mixing, ensuring the quality of the mixed materials.

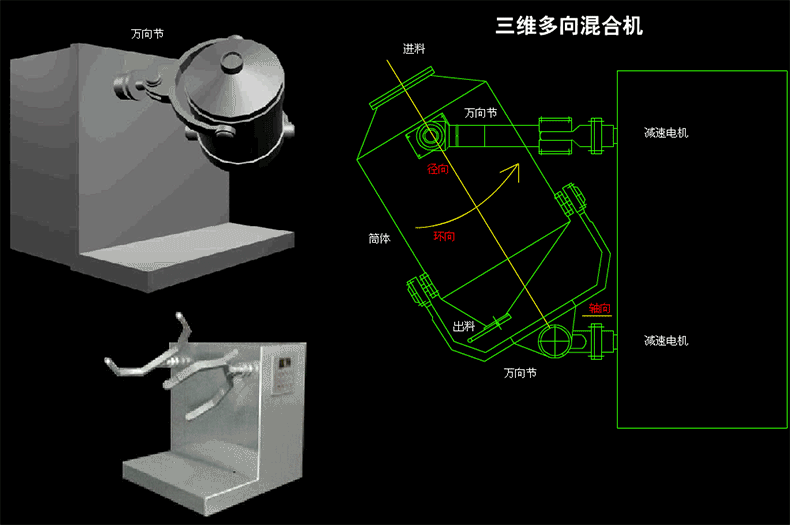

Working principle:

● During operation, the machine accelerates flow and diffusion due to multi-directional mixing, which solves the segregation and accumulation of specific gravity of materials caused by centrifugal force in general mixers. There is no dead corner in mixing, ensuring the quality of the mixed materials.

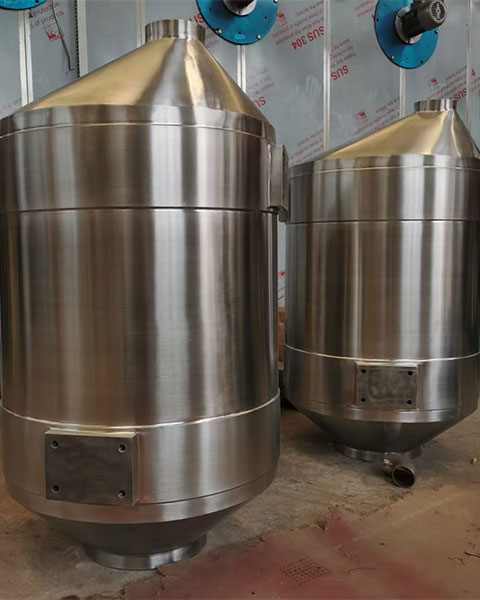

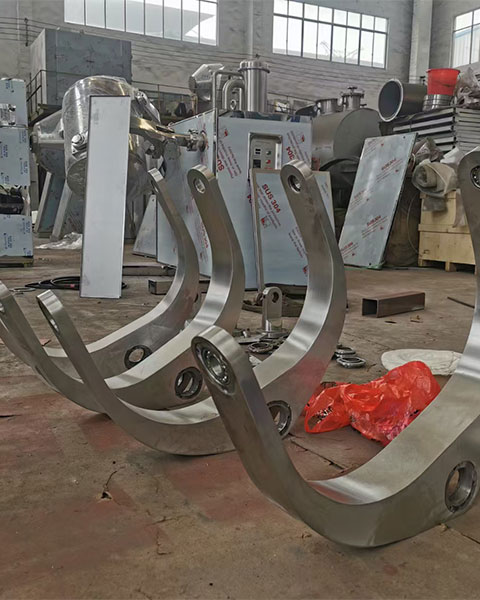

● The machine consists of a base, transmission system, electrical control system, multi-directional motion mechanism, mixing barrel and other components. The mixing barrel in contact with the material is made of stainless steel, and the inner and outer walls of the barrel body are polished.

performance characteristics
  Driven by the driving shaft, the charging cylinder performs cyclic compound movements such as translation, rotation and rolling, promoting the material to move in three directions along the cylinder, thereby realizing the mutual flow, diffusion, accumulation, and doping of multiple materials. To achieve the purpose of uniform mixing.

● The mixing barrel body has multi-directional movement to cross-mix the materials in the barrel body;

● High mixing effect, uniformity can reach more than 99%, and charging factor can reach 90%(40% to 60% for ordinary mixers);

● Short mixing time and high efficiency;

● Small material pollution, convenient discharge, easy cleaning and simple operation.

Adapt materials
◎ The mixing cylinder of this machine moves in multiple directions, and the material has no centrifugal force, no specific gravity segregation, stratification, and accumulation. Each component can have a wide range of weight ratios, and the mixing rate is high. It is an ideal product among various mixers at present. 
◎ The cylinder loading rate is large, up to 90%(only 50% for ordinary mixers), high efficiency and short mixing time.
◎ All parts of the cylinder body are arc transitioned and undergo precision polishing.
◎ Used in pharmaceuticals, chemicals, food, light industry, electronics, machinery, mining and metallurgy, national
◎ Highly uniform mixing of powdery and granular materials from the anti-industrial and various scientific research units.

technical specifications

Note: The bulk specific gravity of materials is 0.6g/cm3If you exceed the limit, please indicate when ordering.
