product Overview

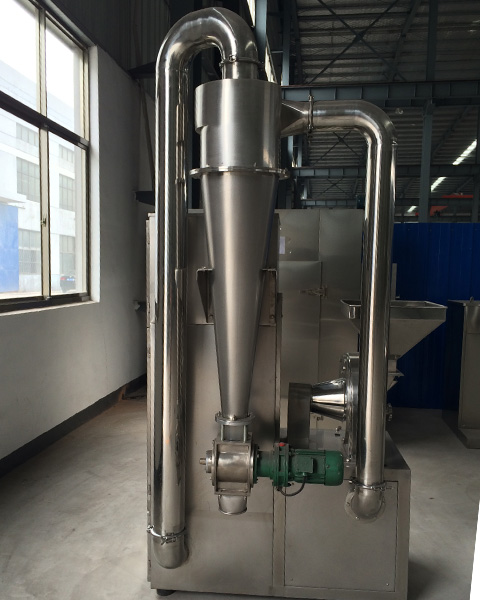

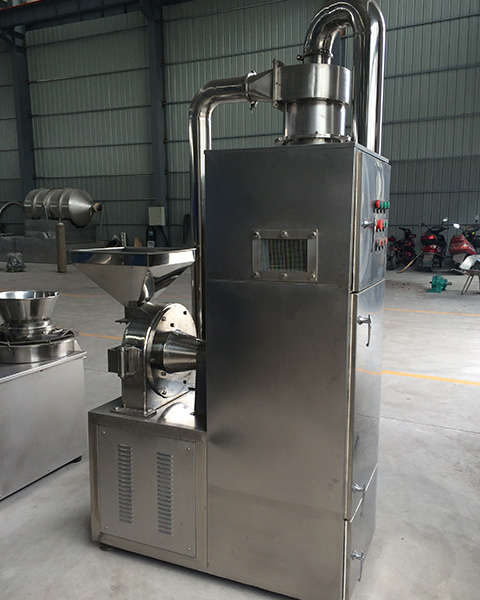

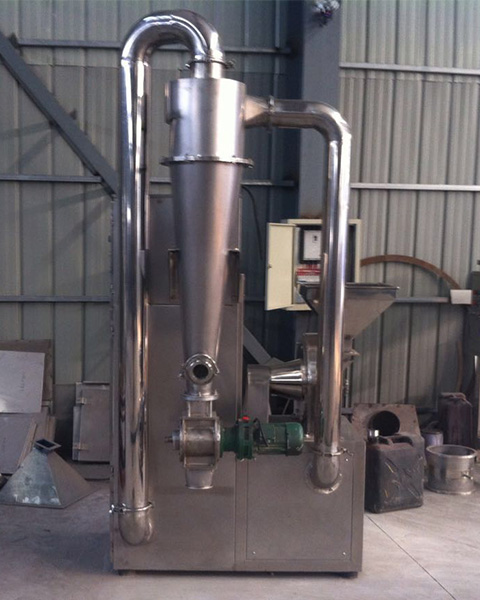

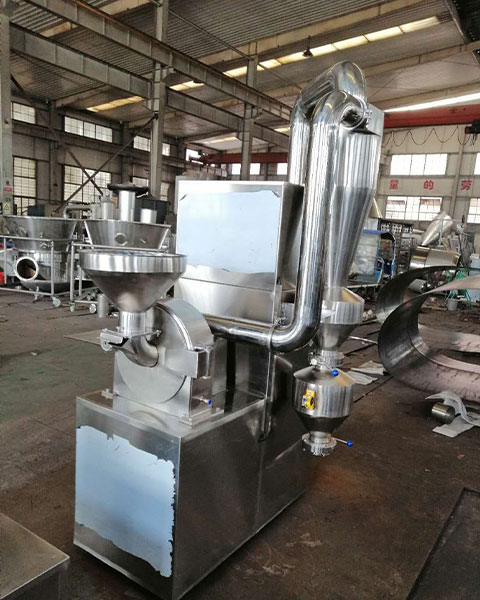

The 30B series universal high-efficiency crusher unit consists of a crusher, an ESC material collection box and an ESC vacuum cleaner. Solve the problem of flying dust during the crushing process of materials. The working principle of this machine is that the materials enter the crushing chamber and are crushed under the impact, shearing, friction of the teeth and the mutual impact of the materials between the movable toothed disc and the fixed toothed disc rotating at high speed. After being screened by a screen, they become the required powder.

Features and uses
   This machine (group) is suitable for crushing fragile materials in the pharmaceutical, chemical, food, pesticide and other industries. It is a new generation of crushing equipment that integrates crushing and dust absorption, and has extremely wide uses.

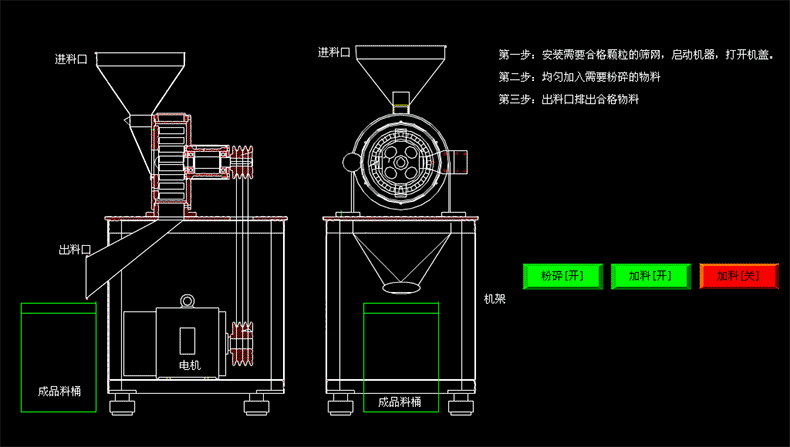

structure and principle
  This unit uses the relative movement between the movable toothed disc and the fixed toothed disc to crush the materials through tooth impact, friction and impact between the materials. The crushed material automatically enters the predator bag under the action of rotating centrifugal force, and the dust is filtered and recovered by the dust collection box through the cloth bag. The machine is designed according to "GMP" standards and is all made of stainless steel materials. There is no flying dust during the production process. It can also improve the utilization rate of materials and reduce corporate costs, which has reached a good level.

Product features:

The B series crusher unit has a simple and stable structure, smooth operation and good crushing effect.

The crushed matter can be discharged directly from the main machine grinding chamber, and the particle size can be obtained by replacing screens with different pore diameters.

The B series crusher unit is made of stainless steel materials, so there is no dust flying during the production process, and it can improve material recovery and reduce corporate costs.

The inner wall of the casing is all machined to make the surface smooth and smooth, which changes the phenomenon of roughness and powder accumulation on the inner wall, so that food, chemical and other production meets standards and meets GMP requirements.
